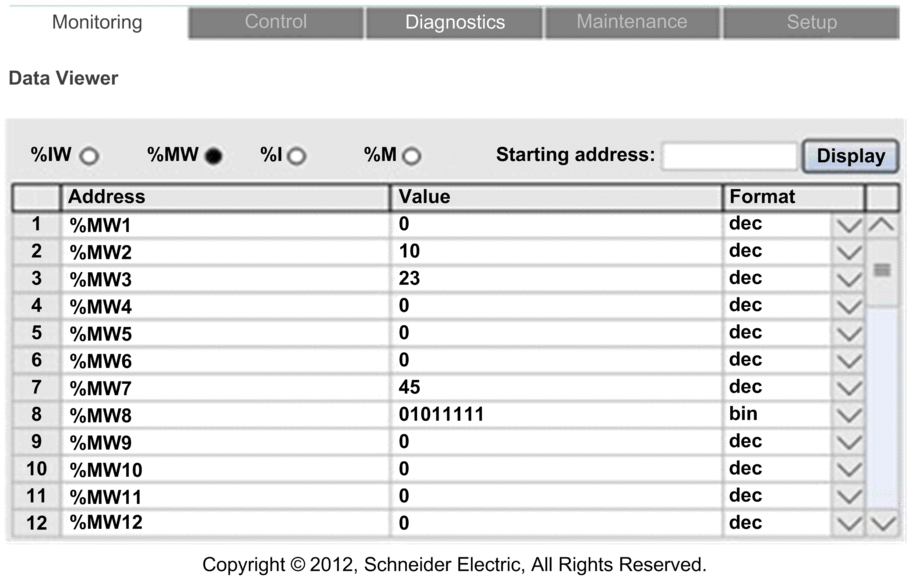

Introducing the Data Viewer Page
Use the page to view a selected range of dynamically changing data at 32 contiguous addresses. Specify the address type and the starting address of the data you wish to view. You can also specify the display format of the data displayed at each address.
Accessing the Data Viewer Page
Access the page from the Monitoring menu. In the navigation menu at the left side of the page, select .
Using the Data Viewer
To use the , follow these steps:
Step |
Description |
|---|---|
1 |
Select the address type:
|
2 |
Type in a value. |
3 |
Click . The displays the value of 32 consecutive address values, beginning at the specified starting address. |
4 |
To specify the display format of data at a specific address, in the column, select:
|
