Pin Assignment

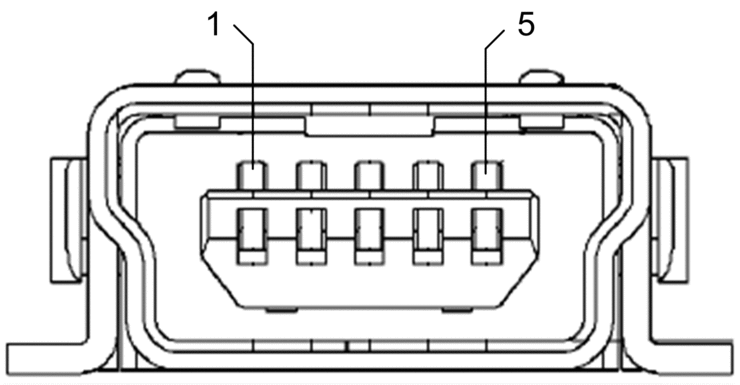

The USB port uses a mini-B female connector.
The USB signals assigned to each pin include:
USB mini-B Pin Number |
Signal |
|---|---|
1 |
VBUS (+5 V) |
2 |
DM (Data –) |
3 |
DP (Data +) |
4 |
Not connected (slave) |
5 |
GND (Signal ground) |
USB Cables
Two connection cables are available to connect a PC or HMI to the processor USB port:
BMX XCA USB 018, 1.8 m (5.91 ft) in length
BMX XCA USB 045, 4.5 m (14.76 ft) in length
Both of these cables are equipped with a connector at each end:
Type A USB: connects to the console
Type mini B USB: connects to the processor
NOTE: It is recommended that you use a USB 2.0 shielded
cable following the USB international standard. Both the BMX XCA USB
018 and BMX XCA USB 045 are shielded cables.
