HSC Function Wiring

About us
Description
The MC80 PLC's HSC IO function is connected using the 28-pin terminal block (BMXFTB28x0).
DANGER
HAZARD OF ELECTRIC SHOCK
  • Disconnect voltage supplying sensors and pre-actuators before plugging/unplugging the terminal block on the module.
  • Remove the terminal block before plugging/unplugging the module on the rack.
Failure to follow these instructions will result in death or serious injury.
Assignment of the 28-Pin Connector

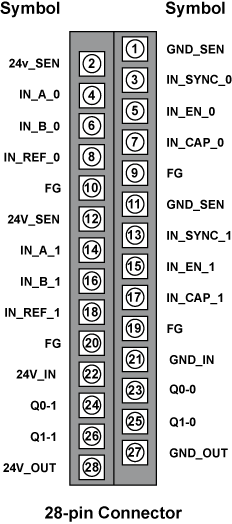

The below figure shows the physical location of the pin numbers for the 28-pin connector:
The symbol and description of each pin are described in the table below:
Pin Number
Symbol
Description
2,12
24V_SEN
24 Vdc output for sensors supply
1,11
GND_SEN
24 Vdc output for sensors supply
9,10,19,20
FG
Functional ground
4,14
IN_A_0 IN_A_1
Input A
6,16
IN_B_0 IN_B_1
Input B
3,13
IN_SYNC_0 IN_SYNC_1
Synchronization input
5,15
IN_EN_0 IN_EN_1
Enable input
8,18
IN_REF_0 IN_REF_1
Homing input
7,17
IN_CAP_0 IN_CAP_1
Capture input
22
24V_IN
24 Vdc input for sensors supply
21
GND_IN
24 Vdc input for sensors supply
23
Q0-0
Q0 output for counting channel 0
24
Q0-1
Q1 output for counting channel 0
25
Q1-0
Q0 output for counting channel 1
26
Q1-1
Q1 output for counting channel 1
28
24V_OUT
24 Vdc input for actuators supply
27
GND_OUT
24 Vdc input for actuators supply
The following table lists the suitable terminal block references for High Speed Counting function:
I/O Function
Reference Number
Hight Speed Counting function
BMX FTB 2800
BMX FTB 2820
