General Description
Modicon MC80 PLC is an automated platform processor which is compact with discrete I/O functions, analog input functions, counting functions, and communication functions.
Illustration

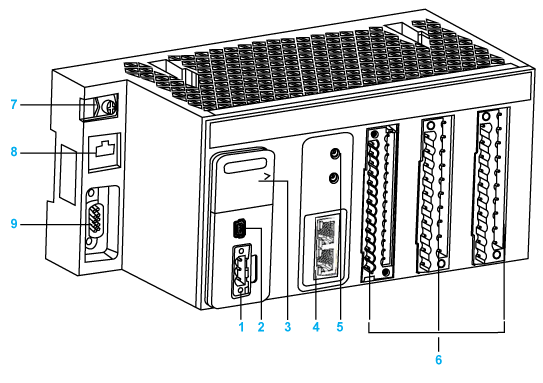

The following figure shows the parts of Modicon MC80 PLC:
1
Power supply input
2
USB port
3
Reset button
4
Ethernet link
5
Rotary switch for IP addressing
6
I/O functions
7
Grounding screw
8
Serial link
9
CANopen link
The following table provides the details of the BMK C80 ••••• processors:
Processor
Description
BMK C80 20310
Controller, 8 DI, 8 DO, and 2 HSC
BMK C80 20301
Controller, 8 DI, 12 DO, and 4 AI
BMK C80 30311
Controller, 8 DI, 12 DO, 2 HSC, and 4 AI
The MC80 PLC is compatible with the terminal blocks BMX FTB 20x0 and BMX FTB 28x0 which needs to be ordered separately.
