TSX XBT N410 Display Panel
(Original Document)
About us
Introduction
The TSX XBT N410 is designed to be connected to the weighing module, in order to act as the main display panel and display weight information.
The display panel should be connected to the module by a shielded cable with two conductors. It is equipped with a 15-pin female SUB-D connector.
Characteristics
The following table shows the electrical characteristics of the display panel:
Display
Green back-lit LCD (122x32 pixels)
Display Capacity
2 lines of 20 characters
Refresh Period
100 ms
Serial Link
RS 485
Transmission Speed
9.6 Kbits/s
Connection
With 25-way SUB-D connector
Power Supply
Plug-in terminal block, 3 screw terminal (pitched at 5.08 mm [0.2 in]). Maximum clamping capacity: 1.5 mm (0.06 in).
Voltage Limits
18 to 30 V, DC
Ripple
5% maximum
Consumption
5 W maximum
Ambient Temperatures
for operation
0...55°C (32...130°F)
for storage
-20...60°C (-4...140°F)
Degree of Protection
front
IP65 and in compliance with IEC 60529 and Nema 4X ("outdoor use")
rear
IP20, in compliance with IEC 60529
Compliant with Standards
IEC 61131-2, IEC 60068-2-6, IEC 60068-2-27, UL 508 and CSA C22‐2 No.14
Display Panel Connections

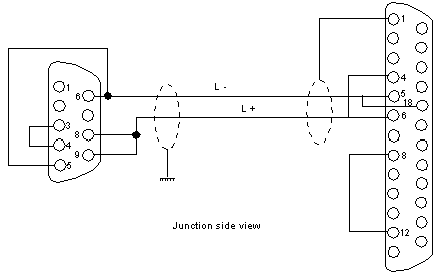

The following diagram shows the link between the TSX ISP Y101 weighing module and the TSX XBT N410 display panel:
The cable, a shielded twisted pair, from the weighing module to the TSX XBT N410 cannot exceed 100 meters (328 feet).
The shield on the module side should be connected to the metal part of the SUB-D connector.
List of Cables
The following table provides the reference and length of each cable.
Reference
Length, m (ft)
SF3 CPY005
5 (16.4)
SF3 CPY010
10 (32.8)
SF3 CPY015
15 (49.2)
SF3 CPY020
20 (65.6)
SF3 CPY025
25 (82.0)
SF3 CPY030
30 (98.4)
