Introducing the Premium Weighing System
(Original Document)
About us
Introduction

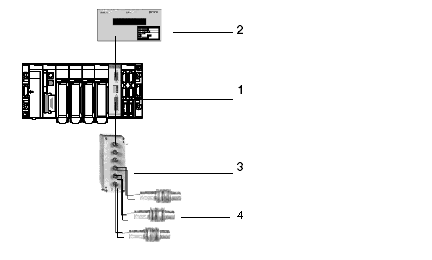

The following illustration displays the Premium weighing system range.
The various elements of the weighing system are described in the following table.
Number
Description
1
the TSX ISP Y101 weighing module
2
the TSX XBT N410 display panel with weighing protocol
3
junction box
4
weighing sensors
NOTE:
The complete Premium weighing range integrates the following process control applications:
  • filling unit
  • multi-product metering
  • flow regulator
  • graded weighing unit
  • batch and continuous totalizer

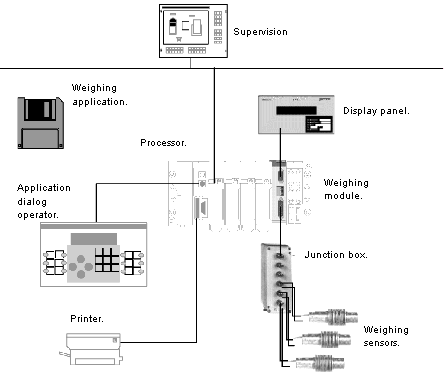

The following illustration presents the different elements that may make up a complete weighing system configuration.
