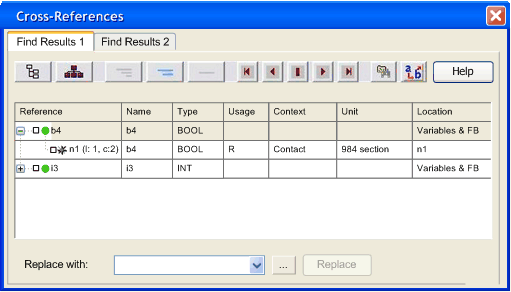

The
Cross-References (Search Results)
dialog displays the results of a search.
To display the
Replace with area of the dialog use the
button.
Elements of the Replace with area of the dialog
|
Element
|
Description
|
|
Replace with
|
To display this area of the dialog use the button.
-
Enable the check boxes for those references of the search results which should be replaced.
-
Enter the replacement data (only data compatible with the data being searched for is tolerated),
-
or click the Down arrow to display a list providing the last 10 entries,
-
or click the ... button to open a Data Selection dialog to select the instance or data to be replaced (only the instances compatible with the instance being searched for are displayed).
|
|
Replace button
|
Starts the replacement operation in the preselected Scope. Please refer to Data Search dialog. |
