FCT_SETSOCKOPT: Sets the Options Associated with the Socket

Function Description

The FCT_SETSOCKOPT function sets options associated with the specified socket. Some options are set automatically when the socket is created by the FCT_SOCKET function.

The following options are available:

DONT_ROUTE: indicates that the outgoing data should not be routed. Packets directed at unconnected nodes are dropped.
RESET_DONT_ROUTE: resets DONT_ROUTE.
KEEP_ALIVE: ensures a connection is kept active by regularly and automatically sending packets on the socket.
RESET_KEEP_ALIVE: resets KEEP_ALIVE.

These options are selected by assigning a number in the Option_Type variable.

The additional parameters and may be configured.

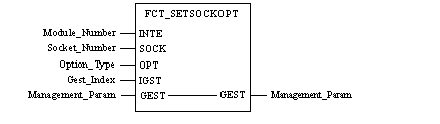

Representation in FBD

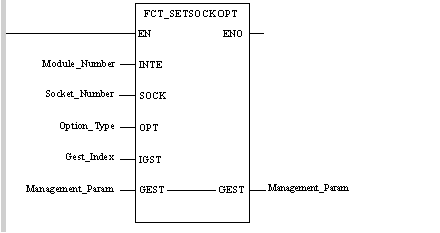

Representation in LD

Representation in IL

LD Module_Number

FCT_SETSOCKOPT Socket_Number, Option_Type, Gest_Index, Management_Param

Representation in ST

FCT_SETSOCKOPT(Module_Number, Socket_Number, Option_Type, Gest_Index, Management_Param);

Description of Parameters

The following table describes the input parameters:

Parameter	Type	Comment
Module_Number	INT	Slot number of network module in rack 0. Low byte is the slot number of network module in rack 0. High byte can be used to extend the number of sockets. 00: Provided for full backward compatibility with applications created on firmware version 3.3 or earlier. 01: Up to 64 sockets can be used (firmware version must be higher than 3.3).
Socket_Number	INT	Socket number
Option_Type	INT	Type of option to be associated with socket. The values which can be assigned to this word are as follows: 1 for DONT_ROUTE 2 for RESET_DONT_ROUTE 3 for KEEP_ALIVE 4 for RESET_KEEP_ALIVE
Gest_Index	INT	Index of first word in Management_Param array

The following table describes the input/output parameters:

Parameter	Type	Comment
Management_Param	ARRAY [0... 3] OF INT	Function management array The operation report can have the following values: 16#00: No error. 16#09: The socket number is invalid. 16#16: Invalid option. The fourth word of the array should contain the number of bytes stored in the buffer.
