Connecting the TBX ESP 1622 Module
(Original Document)
About us
Circuit Diagram

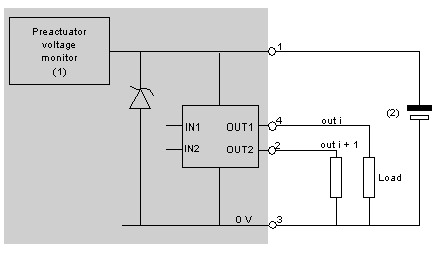

The following illustration shows the circuit diagram for a 24 V 0.5 A static output.
1
Guaranteed threshold for monitored voltage OK: > 18 V, guaranteed threshold for monitored voltage faulty: < 14 V.
2
This power supply is provided via the TBX BAS 10 connector.
Wiring of Output Connections

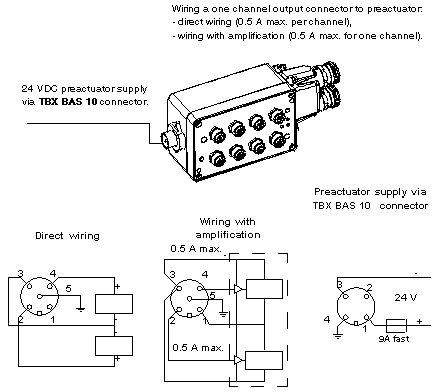

The following is an illustration of the wiring diagram for output connectors.
NOTE: The module is powered by cable TBX FP CB100.
WARNING
SHORT CIRCUIT - LOSS OF PROOF
Do place the blanking plugs on slots where channels are not in use in order to retain the IP65 dust and damp proof protection.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Wiring the TBX BAS 10 Connector

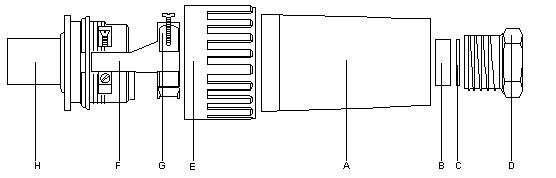

The following illustration shows the different parts of the TBX BAS 10 connector.
A screw terminal block is used to connect the cable (diameter between 7.5 and 10 mm). The following table provides installation details.
Step
Action
1
Strip the cable back up to a maximum of 2 cm.
2
Mount the connector as follows:
  • Assemble parts A, B, C and D, tighten part D without forcing it,
  • Place part E over part H.
3
Feed the cable through the part which has been assembled (cable gland).
4
Attach the wires to the terminals of the second part (+ on terminal 1, - on terminal 3, protective ground on terminal 4).
Caution: if the 24V module supply and 24V preactuator supply are not isolated, a reversion of polarity may destroy the module.
5
Place part F over part H.
6
Attach the cable in the cable clamp F, using part G and the two screws provided.
7
Fit both parts of the connector together and tighten the cable gland D.
