Dust and damp proof monobloc TBX modules (IP65)

(Original Document)

Dimensions: input modules

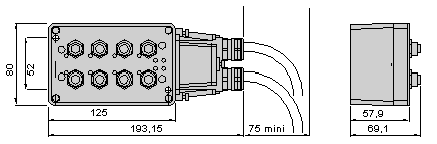

The following drawing shows the dimensions of a IP65 input module.

Dimensions: output modules

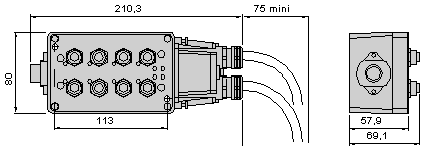

The following drawing shows the dimensions of a IP65 output module.

TBX

I/O modules remoted on the Fipio bus.
