Sealed (IP65) Discrete Monobloc TBX Modules
(Original Document)
About us
General
Sealed (IP65) TBX monobloc Discrete modules comprise either 8 or 16 Discrete 24 VDC inputs, or 8 or 16 Discrete 0.5 A static outputs, protected against overloads and short-circuits.
The Fipio connection point address assignment is set by 8 dip‐switches, allowing up to 126 monobloc modules (IP65) to be connected to the bus (these dip‐switches are located inside the TSX BLP 10 connector). Addresses 0 and 63 are reserved.
A display indicates locally the status of the module and its inputs or outputs.
At a Glance
Sealed discrete TBX modules comprise only one element which includes the communication electronics and the input or output interfaces, depending on the model.
Each channel is fitted with an M12 5-pin female fast connector.
The output module has a power supply connector which is used to supply the outputs and the loads.

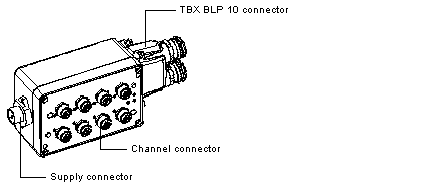

The following diagram shows the sealed Discrete TBX module.
The TBX BLP 10 connector enables the module to be connected to the Fipio bus.
Physical Description

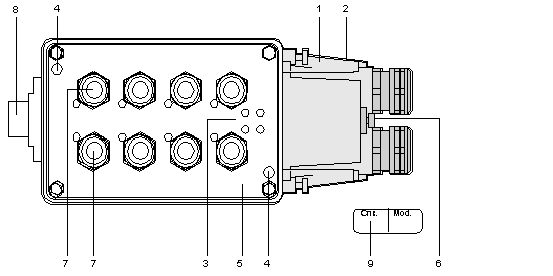

The following is a detailed diagram of the sealed Discrete monobloc TBX module.
The following is a detailed diagram of the sealed Discrete monobloc TBX module.
Number
Description
1
15 pin male SUB D connector for connecting to the Fipio bus, via the TBX BLP 10 connector.
2
8 dip‐switches (in the TBX BLP 10 connector) for setting the Fipio connection point address.
3
Display panel.
4
Fixing for the module.
5
Identification label indicating the type of module channels.
6
Screw clamp for grounding the product.
7
Input or output channel connectors.
8
Power supply connector (output modules only).
9
Self-adhesive label for customer's Connection point address and Module number (to be attached to the TBX BLP 10 connector).
