How to Configure Programmable Channels for the TBX DMS 16P22 Module
(Original Document)
About us
At a Glance
The TBX DMS 16P22 module has, in addition to its 8 input channels, 8 extra channels that can be individually configured as input or output channels.
These make it possible for a single base to have 16 inputs, or from 1 to 8 outputs and 15 to 8 inputs. By default, the base is configured with all 16 channels set to input.
The power supply (+ and -) of the sensors and pre‐actuators is shared.
NOTE: It is not possible to reconfigure channel types in online mode.
Illustration

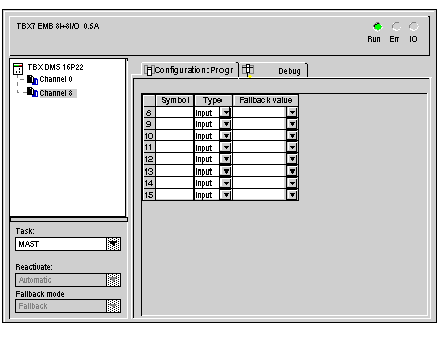

The following illustration shows the configuration screen of the TBX DMS 16P22 module.
Procedure
The following table shows the procedure to configure the programmable channels of the TBX DMS 16P22 module.
Step
Action
1
Access the module’s hardware configuration screen.
2
Select, in the channel area, the second group of the channel.
3
Select the tab Configuration: Programmable.
4
In the configuration area, individually configure the channels as inputs or outputs using the drop-down list in the Type column.
