Introducing the TBX ASS 200 module

General

The TBX ASS 200 base unit is an analog output module containing 2 insulated channels. It must be associated with a TBX LEP 030 communicator. This module offers the following ranges for each of its outputs:

Voltage: 10V,
Current: 0/20 mA and 4/20 mA.

Overview

The TBX ASS 200 module associated with the TBX LEP 030 communicator supports the following functions:

refreshing the digital values corresponding to the analog output values transmitted by the PLC,
processing dialog errors with the PLC,
range selection for each output: voltage, current,
digital analog conversion.

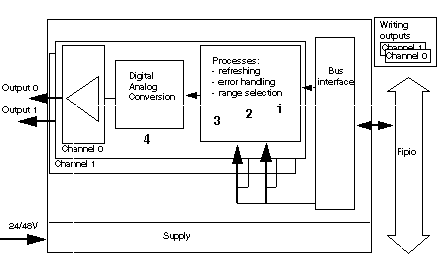

Overview of the TBX ASS 200 module associated with the TBX LEP 030 communicator:

Description

The TBX ASS 200 module associated with the TBX LEP 030 communicator supports the following functions:

Address	Function
1	refreshing the digital values transmitted by the processor,
2	processing PLC dialog faults,
3	range selection for each output: voltage, current,
4	digital analog conversion.

NOTE: One channel can only be used in a single range, i.e. current or voltage.
