HSBY_WR

Function Description

This EFB allows you to use the Hot Standby function. It searches (together with the other Hot Standby Fibs) the configuration of the respective Quantum PLC for the required components.

These components refer to hardware that is actually connected. Therefore, the correct behavior of this EFB on the simulators cannot be guaranteed.

HSBY_WR is used to set different Hot Standby Modes for the Primary CPU. Setting the respective modes means changing the Hot Standby Command register %SW60, which is carried out automatically by the function block. If there is no Hot Standby configuration, the HSBY_ConfigurationFound output is set to 0, otherwise it is set to 1.

EN and ENO can be configured as additional parameters.

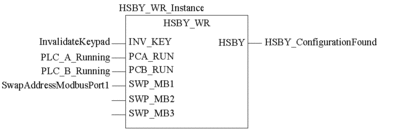

Representation in FBD

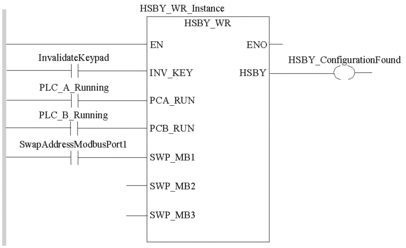

Representation in LD

Representation in IL

Representation:

CAL HSBY_WR_Instance (INV_KEY:=InvalidateKeypad,
         PCA_RUN:=PLC_A_Running, PCB_RUN:=PLC_B_Running,
         SWP_MB1:=SwapAddressModbusPort1,
         HSBY=>HSBY_ConfigurationFound)

Representation in ST

Representation:

HSBY_WR_Instance (INV_KEY:=InvalidateKeypad,
         PCA_RUN:=PLC_A_Running, PCB_RUN:=PLC_B_Running,
         SWP_MB1:=SwapAddressModbusPort1,
         HSBY=>HSBY_ConfigurationFound);

Parameter Description

Description of the input parameters:

Parameter	Data type	Meaning
`INV_KEY`	`BOOL`	In the submenu for the Hot Standby PLC button: 1 = Changes are not allowed. 0 = Changes are allowed.
`PCA_RUN`	`BOOL`	If 1 -> 0, then the Hot Standby ‘A’ CPU on the local rack is forced into OFFLINE mode. If 0 -> 1 and its button mode is in RUN mode, then the Hot Standby ‘A’ CPU is forced into the RUN mode.
`PCB_RUN`	`BOOL`	If 1 -> 0, then the Hot Standby ‘B’ CPU on the local rack is forced into OFFLINE mode. If 0 -> 1 and its button mode is in RUN mode, then the Hot Standby ‘B’ CPU is forced into the RUN mode.
`SWP MB1`	`BOOL`	If 0 and there is a Switchover, then the Modbus address on port 1 of the NEW Primary CPU PLC changes: New Primary CPU PLC address = old Primary CPU address New Standby CPU PLC address = new Primary CPU address + 128.
`SWP MB1`	`BOOL`	If 1 and there is a Switchover, then the Modbus address on Port 1 of the PLC does not change: New Primary CPU PLC address = old Standby CPU address New Standby CPU PLC address = old Primary CPU address
`SWP_MB2`	`BOOL`	Not used. Reserved
`SWP MB3`	`BOOL`	Not used. Reserved

Description of the output parameters:

Parameter	Data type	Meaning
`HSBY`	`BOOL`	1 = Hot Standby configuration found. 0 = Hot Standby configuration not found.

Parameter

Data type

Meaning

HSBY

BOOL

1 = Hot Standby configuration found.

0 = Hot Standby configuration not found.
