Description

Description of the function

The SET_VAL function is used to transfer data form a variable to another.

Public and Private variables are accessible by the EF and the variable path is taken from the Global variables.

NOTE: For a safety application, the variable path is taken from PROCESS scope according to the current location of the SET_VAL instance.

The additional parameters EN and ENO can also be configured.

OS Version Requirement

To use this EF in an application, the minimum required OS version for the CPU is:

Platform	Minimum OS version
M340	3.30
M580	3.20

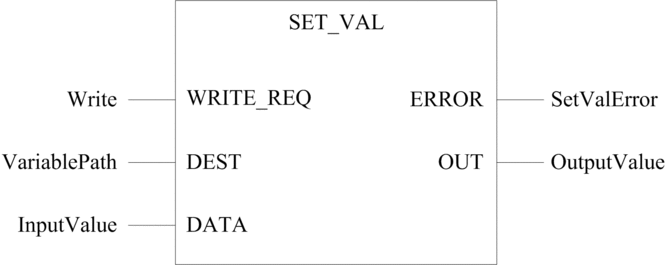

FBD representation

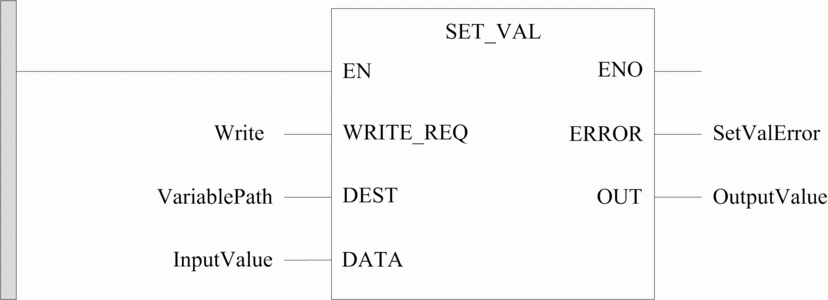

LD representation

IL representation

Representation:

CAL SET_VAL (WRITE_REQ := Write, DEST := VariablePath, DATA := InputValue, ERROR => SetValError, OUT => OutputValue)

ST representation

Representation:

SET_VAL (WRITE_REQ := Write, DEST := VariablePath, DATA := InputValue, ERROR => SetValError, OUT => OutputValue);

Parameter Description

The following table describes the input parameters:

Parameter	Data Type	Significance
`WRITE_REQ`	`BOOL`	Set to 1, it writes the value from the DATA parameter to the variable addressed by the DEST parameter and move it to the `OUT` parameter. Set to 0, it reads the variable value addressed by the DEST parameter and move it to the OUT parameter.
`DEST`	`STRING`	Path of the variable to be written with `DATA` input parameter value. Example: 'MyVar.subfield[6]'. If variable path starts with '.' character, the path is relative to the current location of the `SET_VAL` instance. For example when `SET_VAL` is used within a DFB it can access any variable from this DFB (outputs⁽⁴⁾, public, private, private DFB instances) with syntax `.MyVar`. For example when `SET_VAL` is used within a Program Unit it can access any variable from this Program Unit (public, private, private DFB instances) with syntax `.MyVar`. NOTE: Variable of type DDT that contains BOOL with extracted bit definition is not supported in the Data dictionary , so variable of this type will not be seen by input, and output parameters of the EF.
`DATA`	`ANY` ⁽¹⁾ ⁽²⁾ ⁽³⁾	Data to be written to the variable identified in the `DEST` input. If `DATA` input is not connected, the default value written is zero.
(1) With restrictions. The following data types mapped on `ANY` are not supported: IODDT instance, Device DDT instance, DDT instance that contains reference (REF), and ARRAY OF EBOOL, EFB and DFB. (2) EBOOL and BOOL data types can be mixed. (3) STRING data types of different size can be mixed. (4) Except ARRAY

The following table describes the output parameters:

Parameter	Data Type	Significance
`ERROR`	`BOOL`	Set to 1 in case of detected error.
`OUT`	`ANY` ⁽¹⁾ ⁽²⁾ ⁽³⁾	Provides the value of the variable specified by the `DEST` input at all times.
(1) With the same restrictions than `DATA` parameter. (2) EBOOL and BOOL data types can be mixed. (3) STRING data types of different size can be mixed.

NOTE: The data types of the DATA value and OUT value, and the variable addressed by DEST value must match. The data type for DATA is checked by the EF while the data type for DEST is checked at runtime.

Project Settings

The Data dictionary must be enabled in order that SET_VAL EF can retrieve variable definition in the PLC.

Enabling the option Include DFB/PU private variables allows access to private variables.

For more detailed information refer to chapter Project Settings.

Error Codes

In case of detected error during the block execution, a message is displayed in the diagnostic buffer, which indicates the application error code.

The following table describes the detected application error codes:

Detected error code	Description
APPLICATION ERROR 1	DEST parameter is a null string
APPLICATION ERROR 2	DEST parameter is too long (>1000 characters)
APPLICATION ERROR 3	DEST and DATA Type mismatch
APPLICATION ERROR 4	Variable or field is not found in data dictionary
APPLICATION ERROR 5	Variable path syntax error
APPLICATION ERROR 6	Variable type is not an array
APPLICATION ERROR 7	Array out of bounds
APPLICATION ERROR 8	Array variable has too many subscripts
APPLICATION ERROR 9	Array dimensions exceed the max supported
APPLICATION ERROR 10	Extracted bit is not supported on variable type
APPLICATION ERROR 11	Invalid extracted bit rank
APPLICATION ERROR 12	Variable is read only
APPLICATION ERROR 13	The data dictionary is not present in the application, enable it in the project settings
APPLICATION ERROR 15	Internal error with sub-code
