PRJ_VERS: Project Version

Function Description

The PRJ_VERS function allows you to obtain information about the current project open in Control Expert.

To access this information in Control Expert:

Step	Action
1	On the Tools menu, click PLCScreen. Results: The PLCScreen opens.
2	Click on the Information tab.
3	On the left side of the PLCScreen, click SYSTEM INFORMATION → APPLICATION → INFORMATION. Results: Information about the application is displayed on the right side of the PLCScreen.

Step

Action

1

On the Tools menu, click PLCScreen.

Results: The PLCScreen opens.

2

Click on the Information tab.

3

On the left side of the PLCScreen, click SYSTEM INFORMATION → APPLICATION → INFORMATION.

Results: Information about the application is displayed on the right side of the PLCScreen.

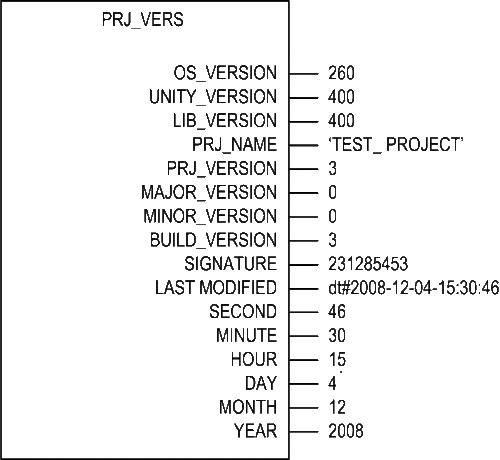

FBD Representation

NOTE: For an explanation of these parameters, refer to Parameter Descriptions.

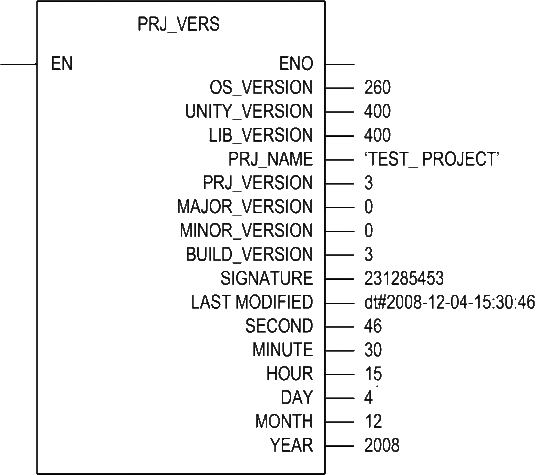

Ladder Representation

IL Representation

The representation in IL of the PRJ_VERS function is as follows:

CAL FBI_PRJ_VERS (

OS_VERSION :=> OS_VERSION,

UNITY_VERSION := > UNITY_VERSION,

LIB_VERSION := > LIB_VERSION,

PRJ_NAME := > PRJ_NAME,

PRJ_VERSION := > PRJ_VERSION,

MAJOR_VERSION :=> MAJOR_VERSION,

MINOR_VERSION :=> MINOR_VERSION,

BUILD_VERSION :=> BUILD_VERSION,

SIGNATURE :=> SIGNATURE,

LAST_MODIFIED :=> LAST_MODIFIED,

SECOND :=> SECOND,

MINUTE :=> MINUTE,

HOUR :=> HOUR,

DAY :=> DAY,

MONTH :=> MONTH,

YEAR :=> YEAR

)

ST Representation

The representation in ST of the PRJ_VERS function is as follows:

FBI_PRJ_VERS(OS_VERSION, UNITY_VERSION, LIB_VERSION, PRJ_NAME, PRJ_VERSION, MAJOR_VERSION, MINOR_VERSION, BUILD_VERSION, SIGNATURE, LAST_MODIFIED, SECOND, MINUTE, HOUR, DAY, MONTH, YEAR);

Parameter Descriptions

The following table describes the PRJ_VERS output parameters:

Parameter	Type	Comment
OS_VERSION	`INT`*100	Processor version
UNITY_VERSION	INT*100	Control Expert version
LIB_VERSION	INT*100	LibSet Version
PRJ_NAME	`String[68]`	Project name
PRJ_VERSION	`UDINT`	Project version
MAJOR_VERSION	INT	Project version (major)
MINOR_VERSION	INT	Project version (minor)
BUILD_VERSION	INT	Build version
SIGNATURE	UDINT	Build signature
LAST_MODIFIED	`DT`	Build last
SECOND	INT	Build version modified (secod)
MINUTE	INT	Build version modified (minute)
HOUR	INT	Build version modified (hour)
DAY	INT	Build version modified (day)
MONTH	INT	Build version modified (month)
YEAR	INT	Build version modified (year)
