Function Description

The OPEN_FILE function enables a file named FileName to be opened (in the \DataStorage\ directory). The file must already exist. The argument mode has one of the following values: O_RDONLY, O_WRONLY, O_RDRW.

The file is opened in binary mode. This means that there is no translation of specific characters like CTRL-Z (EOF marker) or carriage return/line break.

A maximum number of 16 files can be opened simultaneously.

If you use the simulator mode the file is opened in the temporary user folder.

To access the file by FTP refer to this page.

NOTE: Each time a file is opened, a random value is returned by the FileDescriptor parameter.

This will be used when you close the file. If you open a new file without closing the previous one, a new FileDescriptor parameter value is returned, and you will not be able to close the previous file.Therefore you should save the FileDescriptor parameter after opening a file.

When the maximum number of opened files is reached, an error is returned if you try to open any further files.

NOTE: It is still possible to modify the status of a file in the file system although the file is already open.The status of a file (Read Only, Read/Write) is not evaluated when the file is opened, but only when data are written into. (For example it is possible to open a Read Only file in R/W mode without any error). Thus, as long as the file is in read only mode in the file system, any writing request will lead to an error (error 14) although the file has been opened successful in R/W mode. As soon as the file is in R/W mode again, the writing requests will work again without the obligation to close and reopen the file.

The additional parameters EN and ENO can be configured.

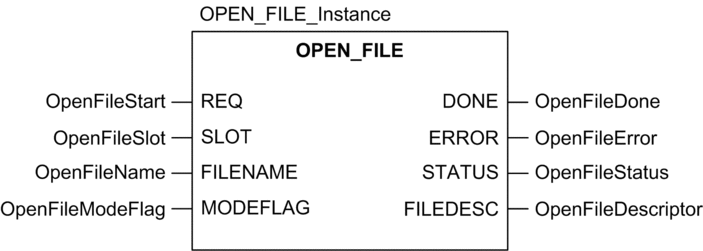

FBD Representation

The representation in FBD of the OPEN_FILE function is as follows:

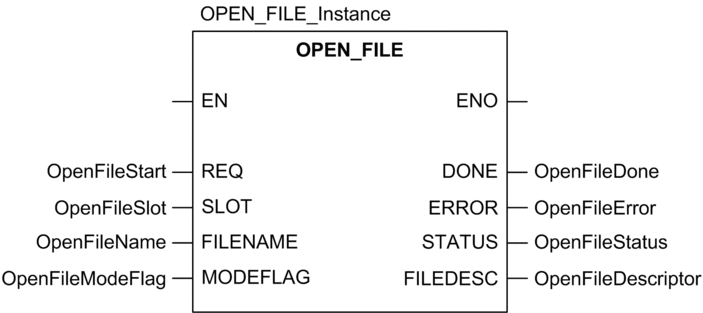

Ladder Representation

The representation in Ladder of the OPEN_FILE function is as follows:

IL representation

Representation:

CAL OPEN_FILE_Instance (REQ:=OpenFileStart, SLOT:=OpenFileSlot, FILENAME:=OpenFileName, MODEFLAG:=OpenFileModeFlag, DONE=>OpenFileDone, ERROR=>OpenFileError, STATUS=>OpenFileStatus, FILEDESC=>OpenFileDescriptor)

ST representation

Representation:

OPEN_FILE_Instance (REQ:=OpenFileStart, SLOT:=OpenFileSlot, FILENAME:=OpenFileName, MODEFLAG:=OpenFileModeFlag, DONE=>OpenFileDone, ERROR=>OpenFileError, STATUS=>OpenFileStatus, FILEDESC=>OpenFileDescriptor);

Parameter Description

The following table describes the input parameters:

Parameter

Type

Comment

SLOT

DINT

This parameter specifies the slot address of the memory card (always has address 0).

FILENAME

STRING

This parameter specifies the name of the file to open.

MODEFLAG

INT

This parameter specifies the opening mode.

  • O_RDONLY (0): opened in read-only mode,

  • O_WRONLY (1): opened in write-only mode,

  • O_RDWR (2): opened in read and write mode.

The following table describes the output parameters:

Parameter

Type

Comment

FILEDESC

DINT

This parameter allows the DATA_STORAGE function to access the file.

Description of common parameters.
