Introduction

The ability to jump into a parallel string or out of a parallel string can be enabled optionally with multi-token

Extra tokens are generated in all cases.

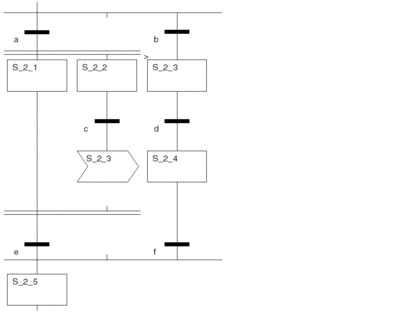

Jump out of a Parallel String

Jump out of a Parallel String:

If...

Then

If the transition condition a is true and b is false,

then a sequence runs to S_2_1 and S_2_2.

If steps S_2_1 and S_2_2 are activated,

then the strings run independently of one another.

If the transition condition c is true,

then a jump is made to S_2_3.

A second token is created by the jump out of the parallel string. Both tokens are running parallel to one another, i.e. S_2_1 and S_2_3 are active at the same time.

Token 1 (S_2_1)

Token 2 (S_2_3)

If...

Then

If...

Then

If the transition condition e is true,

then a sequence runs to S_2_5.

If transition condition d is true,

then a sequence runs to S_2_4.

If transition condition f is true,

then a sequence runs to S_2_5.

If S_2_5 is still active (token 1) because of the activation of transition condition e, then token 2 is ended and the string will be further processed as Single-Token.

If S_2_5 is no longer active (token 1), then it is reactivated by token 2 and both tokens continue running parallel (Multi-Token).

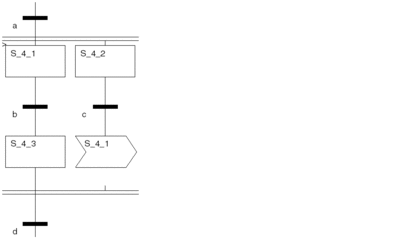

Jump Between Two Branches of a Parallel String

Jump Between Two Branches of a Parallel String:

If...

Then

If the transition condition a is true,

then a sequence runs to S_4_1 and S_4_2.

If steps S_4_1 and S_4_2 are activated,

then the strings run independently of one another.

If transition condition b is true,

then a sequence runs to S_4_3.

If the transition condition c is true,

then a jump is made to S_4_1.

A second token is created by the jump out of a branch string. Both tokens are running parallel to one another, i.e. S_4_3 and S_4_1 are active at the same time.

Token 1 (S_4_3)

Token 2 (S_4_1)

If...

Then

If...

Then

Step S_4_3 is processed

Step S_4_1 is processed

If transition condition b is true,

then a sequence runs to S_4_3.

If step S_4_3 is still active (token 1) during the activation by token 2 then token 2 is ended and the string will continue to be processed as Single-Token.

If step S_4_3 is no longer active (token 1) because of the activation by token 2 , then it is reactivated by token 2 and both tokens continue running parallel (Multi-Token).

In both cases, true transition condition d causes the parallel string to be left.

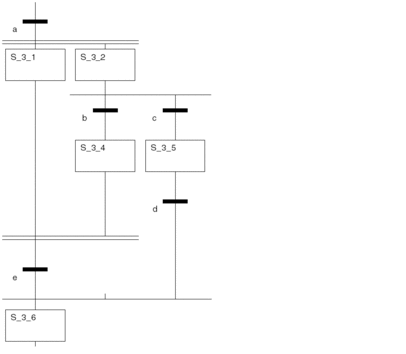

Leaving a Parallel String with an Alternative Branch

Leaving a Parallel String with an Alternative Branch:

If...

Then

If the transition condition a is true,

then a sequence runs to S_3_1 and S_3_2.

If steps S_3_1 and S_3_2 are activated,

then the strings run independently of one another.

If transition condition b is false and c is true,

then a sequence runs to S_3_5.

A second token is created by the sequence running on the alternative branch out of the parallel string. Both tokens are running parallel to one another, i.e. S_3_1 and S_3_5 are active at the same time.

Token 1 (S_3_1)

Token 2 (S_3_5)

If...

Then

If...

Then

Since S_3_4 cannot become active, S_3_1 remains (token 1) active.

If transition condition d is true,

then a sequence runs to S_3_6.

If transition condition a is true then a sequence runs to S_3_1 and S_3_2. This ends token 2 and the string is again processed as Single-Token.

If the transition condition a is true,

then a sequence runs to S_3_1 and S_3_2.



If transition condition b is true and c is false,

then a sequence runs to S_3_4.

Since S_3_4 cannot become active, S_3_1 remains (token 1) active until a sequence appears on S_3_2 (token 2) and the transition is b.

If S_4_4 is no longer active (token 1), then it is reactivated by token 2 and both tokens continue running parallel (Multi-Token).

(Merging the two tokens can also be done in S_4_3.)
