Elementary Function Block

Elementary function blocks have internal states. If the inputs have the same values, the value on the output can have another value during the individual operations. For example, with a counter, the value on the output is incremented.

Function blocks can have several output values (outputs).

Derived Function Block

Derived function blocks (DFBs) have the same characteristics as elementary function blocks. The user can create them in the programming languages FBD, LD, IL, and/or ST.

Parameters

"Inputs and outputs" are required to transfer values to or from function blocks. These are called formal parameters.

The current process states are transferred to the formal parameters. They are called actual parameters.

The following can be used as actual parameters for function block inputs:

• Variable

• Address

• Literal

The following can be used as actual parameters for function block outputs:

• Variable

• Address

The data type of the actual parameters must match the data type of the formal parameters. The only exceptions are generic formal parameters whose data type is determined by the actual parameter.

When dealing with generic ANY_BIT formal parameters, actual parameters of the INT or DINT (not UINT and UDINT) data types can be used.

This is a supplement to IEC 61131-3 and must be enabled explicitly.

Example:

Allowed:

AND (AnyBitParam := IntVar1, AnyBitParam2 := IntVar2);

Not allowed:

AND_WORD (WordParam1 := IntVar1, WordParam2 := IntVar2);

(In this case, AND_INT must be used.)

AND_ARRAY_WORD (ArrayInt, ...);

(In this case an explicit type conversion must be carried out using INT_ARR_TO_WORD_ARR (...);.)

Not all formal parameters must be assigned with a value. The formal parameter types that must be assigned a value are in the following table:

If no value is allocated to a formal parameter, then the initial value will be used for executing the function block. If no initial value has been defined then the default value (0) is used.

If a formal parameter is not assigned with a value and the function block/DFB is instanced more than once, then the following instances are run with the old value.

Public Variables

In addition to inputs and outputs, some function blocks also provide public variables.

These variables transfer statistical values (values that are not influenced by the process) to the function block. They are used for setting parameters for the function block.

Public variables are a supplement to IEC 61131-3.

The assignment of values to public variables is made via their initial values or assignments.

Example:

Public variables are read via the instance name of the function block and the names of the public variables.

Example:

Private Variables

In addition to inputs, outputs and public variables, some function blocks also provide private variables.

Like public variables, private variables are used to transfer statistical values (values that are not influenced by the process) to the function block.

Private variables can not be accessed by user program. These type of variables can only be accessed by the animation table.

Private variables are a supplement to IEC 61131-3.

Programming Notes

Attention should be paid to the following programming notes:

• Functions blocks are only executed if the input EN = 1 or is not used.

• The assignment of variables to ANY or ARRAY output types must be made using the => operator.

  Assignments cannot be made outside of the function block call.

  The instruction

  My_Var := My_SAH.OUT;

  is invalid, if the output OUT of the SAH function block is of type ANY.

  The instruction

  Cal My_SAH (OUT=>My_Var);

  is valid.

• Special conditions apply when using VAR_IN_OUT variables.

• The use of function blocks consists of two parts in ST:

  • Declaration

  • calling the function block

• There are two ways of calling a function block:

  • Formal call (calling a function with formal parameter names)

    This way variables can be assigned to outputs using the => operator.

  • Informal call (call without formal parameter names)

• Function block/DFB instances can be called multiple times; other than instances of communication EFBs, which can only be called once.

Declaration

Before calling a function block it must be declared in the variables editor.

Formal Call

With formal calls (calls with formal parameter names), the function block is called using an instruction sequence made from the function blocks instance names followed a bracketed list of actual parameter assignments to the formal parameters. Assign input formal parameters using := operator, and for output formal parameters using the => operator. The sequence in which the input formal parameters and output formal parameters are enumerated is not significant.

EN and ENO can be used for this type of call.

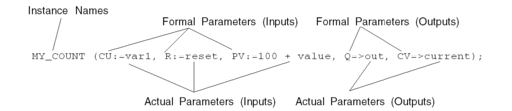

Calling a function block with formal parameter names:

Calling the same function block in FBD:

Assigning the value of a function block output is made by entering the actual parameter name, followed by the assignment instruction := followed by the instance name of the function block and loading the formal parameter of the function block output (separated by a full-stop).

For example,

MY_COUNT (CU:=var1, R:=reset, PV:=100 + value);
Q := MY_COUNT.out ;
CV := MY_COUNT.current ;

It is not necessary to assign a value to all formal Parameters).

MY_COUNT (CU:=var1, R:=reset, Q=>out, CV=>current);

Calling the same function block in FBD:

Informal Call

With informal calls (call without Formal parameter names), the function block is called using an instruction made from the function block instance names, followed by a bracketed list of the actual parameters for the inputs and outputs. The order in which the actual parameters are listed in a function block call is significant.

EN and ENO cannot be used for this type of call.

Calling a function block without formal parameter names:

Calling the same function block in FBD:

With informal calls it is not necessary to assign a value to all formal Parameters). This does not apply for VAR_IN_OUT variables, for input parameters with dynamic lengths and outputs of type ANY. It must always be assigned a variable.

This is a supplement to IEC 61131-3 and must be enabled explicitly.

An empty parameter field is used to skip a parameter.

Call with empty parameter field:

MY_COUNT (var1, , 100 + value, out, current) ;

Calling the same function block in FBD:

An empty parameter field does not have to be used if formal parameters are omitted at the end.

MY_COUNT (var1, reset) ;

Calling the same function block in FBD:

Calling a Function Block without Inputs

Even if the function block has no inputs or the inputs are not to be parameterized, the function block should be called before its outputs can be used. Otherwise the initial values of the outputs will be transferred, i.e. "0".

For example:

Calling the function block in ST:

MY_CLOCK () ;MY_COUNT (CU:=MY_CLOCK.CLK1, R:=reset, PV:=100,
          Q=>out, CV=>current) ;

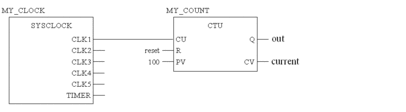

Calling the same function block in FBD:

Multiple Function Block Instance Call

Function block/DFB instances can be called multiple times; other than instances of communication EFBs, these can only be called once.

Calling the same function block/DFB instance more than once makes sense, for example, in the following cases:

• If the function block/DFB has no internal value or it is not required for further processing.

  In this case, memory is saved by calling the same function block/DFB instance more than once since the code for the function block/DFB is only loaded once.

  The function block/DFB is then handled like a "Function".

• If the function block/DFB has an internal value and this is supposed to influence various program segments, for example, the value of a counter should be increased in different parts of the program.

  In this case, calling the same function block/DFB means that temporary results do not have to be saved for further processing in another part of the program.

EN and ENO

With all function blocks/DFBs, an EN input and an ENO output can be configured.

If the value of EN is equal to "0", when the function block/DFB is called, the algorithms defined by the function block/DFB are not executed and ENO is set to "0".

If the value of EN is equal to "1", when the function block/DFB is invoked, the algorithms which are defined by the function block/DFB will be executed. After the algorithms have been executed successfully, the value of ENO is set to "1". If an error occurred while executing the algorithms, ENO is set to "0".

If the EN pin is not assigned a value, when the FFB is invoked, the algorithm defined by the FFB is executed (same as if EN equals to "1").

If ENO is set to "0" (results from EN=0 or an error during execution), the outputs of the function block/DFB retain the status from the last cycle in which they were correctly executed.

The output behavior of the function blocks/DFBs does not depend on whether the function blocks/DFBs are called without EN/ENO or with EN=1.

If EN/ENO are used, the function block call must be formal. The assignment of variables to ENO must be made using the => operator.

MY_COUNT (EN:=1, CU:=var1, R:=reset, PV:=100 + value,
           ENO=>error, Q=>out, CV=>current) ;

Calling the same function block in FBD:

VAR_IN_OUT-Variable

Function blocks are often used to read a variable at an input (input variables), to process it and to restate the altered values of the same variable (output variables). This special type of input/output variable is also called a VAR_IN_OUT variable.

The following special features are to be noted when using function blocks/DFBs with VAR_IN_OUT variables.

• All VAR_IN_OUT inputs must be assigned a variable.

• VAR_IN_OUT inputs may not have literals or constants assigned to them.

• VAR_IN_OUT outputs may not have values assigned to them.

• VAR_IN_OUT variables cannot be used outside of the function block call.

Calling a function block with VAR_IN_OUT variable in ST:

MY_FBLOCK(IN1:=V1, IN2:=V2, IO1:=V3, OUT1=>V4, OUT2=>V5);

Calling the same function block in FBD:

VAR_IN_OUT variables cannot be used outside the function block call.

The following function block calls are therefore invalid:

Invalid call, example 1:

Invalid call, example 2:

The following function block calls are always valid:

Valid call, example 1:

Valid call, example 2:
