Introduction

A data reference allows the user to access the instance of this data either by:

• immediate value, true only for data of type EDT

• address settings, true only for data of type EDT

• name (symbol), true for all EDT, DDT, EFB, DFB data types, as well as for SFC objects

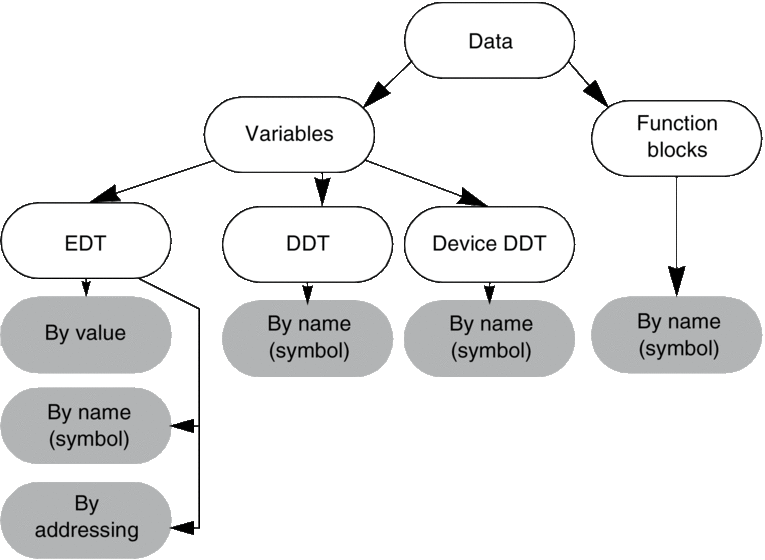

Illustration

Possible data references according to data type (dark gray).
