Time Stamp Module
Use these modules on an Ethernet remote I/O drop:
Modicon X80 BMXCRA31210 adapter module with a BMX ERT 1604 time stamp module
Quantum 140CRA31200 adapter module with a 140 ERT 1604 module

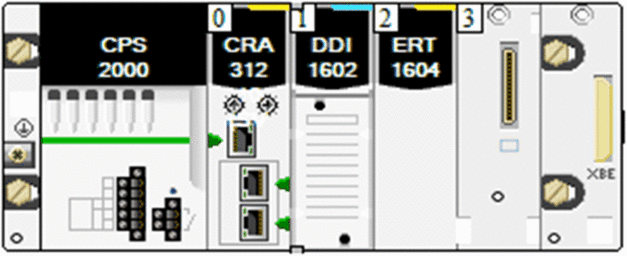

This sample rack configuration in Control Expert shows an X80 EIO drop with the required BMX ERT 1604 module:
Configuration

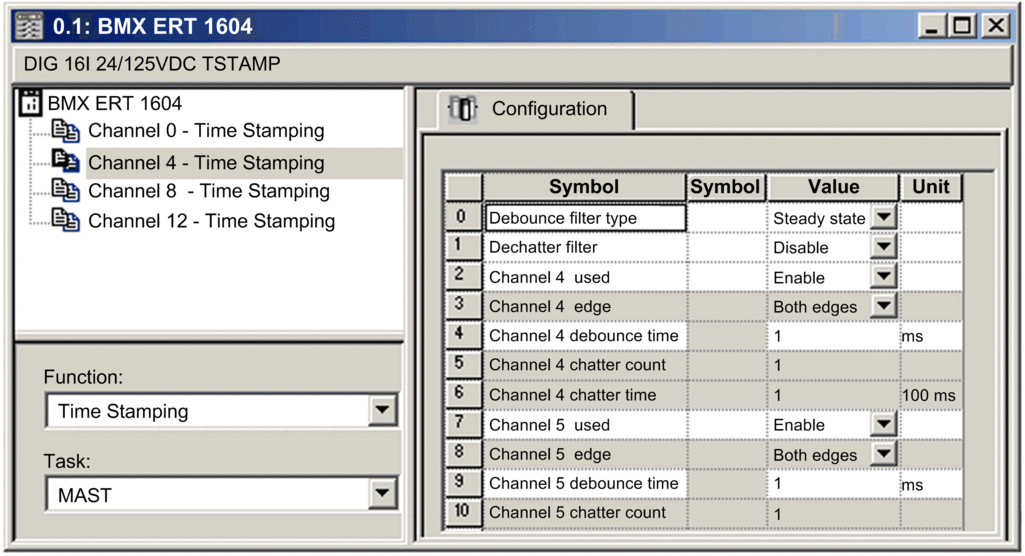

Double-click the BMX ERT 1604 in the remote rack to see the time stamp Configuration tab.
NOTE: For more information about time stamping with
the BMXCRA31210 modules, refer to the Modicon X80, BMXERT0604T Time Stamp Module, User Guide.
