Display

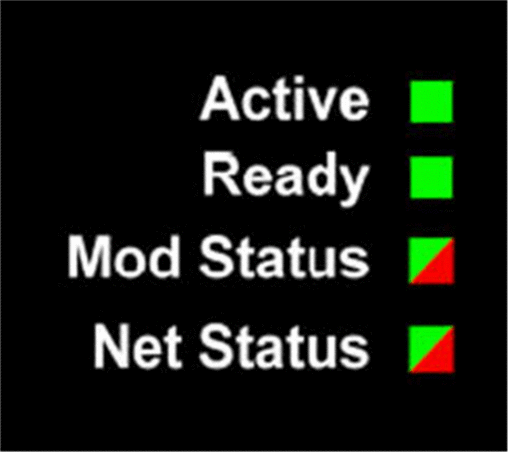

These LEDs are on the front of the 140CRP31200 module:

Indications

LED conditions:

Description

Active

Ready

Mod Status

Net Status

green

green

red

green

red

green

general

component not operating

—

off

on

off

—

—

invalid configuration

—

off

flash

off

—

—

not configured

—

off

off

flash

—

—

configured

on

blink

off

on

off

on/flash

no/default module MAC

—

blink 2

flash

off

off

off

no/default port MAC

—

blink 2

flash

off

off

off

power-up sequence

sequence

5

6

2

1

4

3

non-ODVA standard

blink (.25 sec on; .25 sec off)

blink (.25 sec on; .25 sec off)

—

—

—

—

ODVA standard

—

—

blink (.25 sec on; .25 sec off)

blink (.25 sec on; .25 sec off)

blink (.25 sec on; .25 sec off)

blink (.25 sec on; .25 sec off)

FDR client

no Ethernet connections

—

blink 3

—

—

—

—

duplicate IP

—

blink 4

off

on

on

off

waiting for IP

—

blink 5

off

on

off

off

default IP

—

blink 6

off

on

off

off

receive or assign IP

—

on

off

on

off

flash

invalid configuration

—

blink 7

off

on

off

off

EIP scanner

no EIP connection or all EIP connections closed

—

on

flash

off

off

flash

one or more connections established

—

on

off

on

off

on

one connection timeout

—

on

off

on

flash

off
NOTE: In Hot Standby systems, the Net Status LEDs on the 140 CRP 312 00 modules are solid green during normal operations. When power to the 140 CRP 312 00 module in either rack A or B is lost, the Net Status LED on the 140 CRP 312 00 module in the partner rack is unchanged (solid green).

Ethernet Port Indications

These LEDs report the status of the Ethernet port:

Name

Color

Status

Description

LINK

green

on

100 Mbps link detected

yellow

on

10 Mbps link detected

—

off

no detected link

ACT

green

blinking

active Ethernet link (transmit or receive)

—

off

inactive Ethernet link
