Channel Properties - Switch Page

Description

Use the Switch tab of the Switch page to:

enable or disable each of the 4 Ethernet ports on the 140NOC78•00 head module
view and edit the Baud Rate for each port, which includes both the:
- transmission speed

  — and —
- duplex mode

NOTE: The Ethernet communication module supports only the Ethernet II frame type.

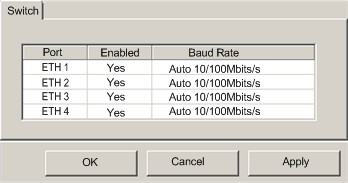

The Switch page looks like this:

To display this page, select the Channel Properties → Switch node in the navigation tree located on the left side of the Device Editor. Then click the Switch tab.

NOTE: Refer to the topic Configuring Properties in the Device Editor for instructions on how to edit properties.

Properties

This page presents the following properties:

Name	Description
Port	(read-only) The Ethernet port number: 1...4.
Enabled	The active status of the port: Yes = enabled No = disabled
Baud Rate	The transmission speed and duplex mode for the network. Values include: Auto 10/100 Mbits/sec (default) 100 Mbits/sec Half duplex 100 Mbits/sec Full duplex 10 Mbits/sec Half duplex 10 Mbits/sec Full duplex NOTE: Schneider Electric recommends the default setting — Auto 10/100 Mbits/sec. This setting causes the connected devices to perform auto-negotiation and thereby determine the fastest common transmission rate and duplex mode.
