Router Status

Introduction

Use the Router Status page to diagnose communication between devices on separate networks that are connected via the 140NOC78100 module’s IP forwarding service.

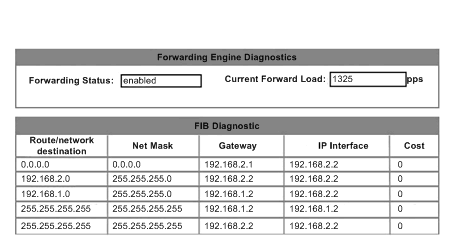

The display grid provides the following information about each active connection:

Forwarding status: enabled or disabled (forwarding/discarding) based on status of IP forwarding service
Current forward load: the total load in pps (packets per second) of IP forwarding service
Route: the destination network
Network mask: the CIDR scope of route
IP gateway: the gateway IP address
IP address: the interface on destination network
Cost: the cost of route (metric)

To open this page:

Step	Action
1	Starting at the Home page, click the Diagnostics main menu item. Result: The Diagnostics page opens.
2	On the left side of the Diagnostics page, select Router Status.
3	If necessary, type the HTTP web access password. NOTE: The default password is USER.
