Introduction
Use the Rack Viewer to access web pages that describe the identity, placement, configuration, and operation of modules in the Quantum rack.
To view information describing a specific module, including the 140NOC78•00 head module, click the image of that module in the Rack Viewer.
Rack Display

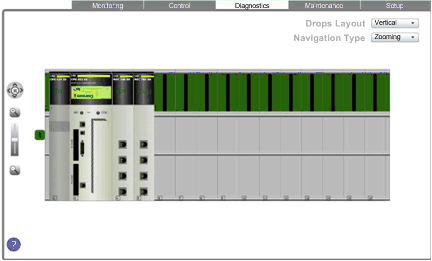

The Rack Viewer looks like this, when it is first opened:
To open this page:
Step
Action
1
Starting at the Home page, click the Diagnostics main menu item.
Result: The Diagnostics page opens.
2
On the left side of the Diagnostics page, select Rack Viewer.
3
If necessary, type in the HTTP web access password.
NOTE: The default password is USER.
4
To open a page displaying configuration and operating data for the 140NOC78•00 module, click the module image in the rack.
Result: The Rack Viewer parameter page opens.
5
To return to the main Rack Viewer page, click the Back arrow.
