The 140NOC78100 control head module is installed on the local rack of a Quantum EIO system. The module provides the interfaces to communicate with a control network and client applications on an .
The main purpose of the 140NOC78100 head module is to provide transparency between the , the , and an , while preserving device network . In addition, the 140NOC78100 module also provides services to communicate with PLC applications running on the control network.
Only one 140NOC78100 module, which supports 1 Gbds can be configured on the local rack.
To communicate with remote I/O devices on a remote I/O network, interlink the 140NOC78100 module with the 140CRP31200 remote I/O head module (or a 140NOC78000 distributed I/O head module that is interlinked with the 140CRP31200 module) on the local rack.
To communicate with remote I/O or distributed I/O devices on the device network, interlink the 140NOC78100 module with the 140NOC78000 distributed I/O head module or the 140CRP31200.
To communicate with devices on an extended distributed I/O network, interlink the 140NOC78000 module with the extended port of the 140NOC78100 module.

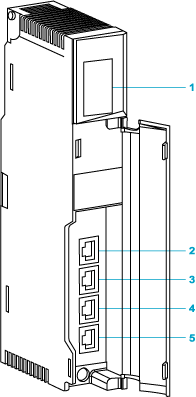

140NOC78100:
1
LED display
2
SERVICE/EXTEND port (ETH 1)
3
INTERLINK port (ETH 2)
4
CTRL NETWORK port (ETH 3)
5
CTRL NETWORK port (ETH 4)
NOTE: To help prevent dust from entering the unused Ethernet ports on this module, cover the port with the stopper:
The 140NOC78100 module monitors the functionality of network links depending on which links are connected to the network. The module has 4 external ports (up to three IP addresses).
|
Port
|
Quantity
|
Description
|
|
SERVICE/EXTEND
|
1
|
The allows the diagnosis of Ethernet ports and provides access to external tools and devices (Control Expert, ConneXium Network Manager, HMI, etc.). The port supports these modes:
-
port mirroring: In this mode, data traffic from one or more of the 3 external ports – plus the internal port – is copied to this port. This allows a connected tool to monitor and analyze the port traffic.
-
access port (default): In this mode, diagnostic information is provided via EtherNet/IP or Modbus explicit messages, or via SNMP.
NOTE: In access port mode, the IP address of the port is the same as that of the control network.
-
extended network: In this mode, an existing distributed I/O network participates in the Ethernet remote I/O network when a 140NOC78000 distributed I/O head module is connected to the SERVICE/EXTEND port of the 140NOC78100 control head module and also connected to the INTERLINK port of the 140CRP31200 remote I/O head module.
-
disabled
NOTE:
-
If the device, which is connected to the SERVICE/EXTEND port, is configured for a speed that exceeds 100 Mbps, the Ethernet link may not be established between the device and the module through the SERVICE/EXTEND port.
-
In port mirroring mode, the SERVICE/EXTEND port acts like a read-only port. That is, you cannot access devices (ping, connect to Control Expert, etc.) through the SERVICE/EXTEND port.
|
|
INTERLINK
|
1
|
The provides connectivity to other Quantum EIO head modules on the local rack.
|
|
CTRL NETWORK
|
2
|
These 2 copper ports provide:
-
connections for control network communications
-
star, loop, or mesh topology
|
