Software Installation
A compatible VPN client software is necessary to establish a VPN tunnel based on IPSEC protocol between the client and the firewall.
The EAGLE40 firewall requires the use of the VPN client IPSEC/IKEV2.
NOTE: Schneider Electric recommends
using the VPN client solution provided by TheGreenBow.
In the configuration procedures described below we use this software that you can download at the following URL:
https://www.thegreenbow.fr/vpn_client.html, for Windows.
https://www.thegreenbow.fr/vpn_linux.html, for Linux
Machines and Operating Systems
Before configuring the firewall, you need to prepare all IP address in use in the architectures.

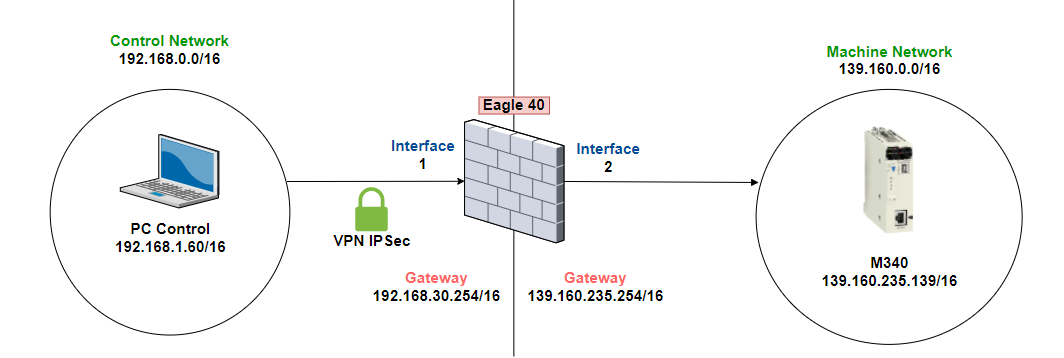

The following diagram is given as an example:
