Instructions for Adjusting Dead Time or Delay T_DELAY
(Original Document)
About us
At a Glance
Observe the adjustment unit measurement and control signals for a recording. If we call the model delay, two illustrations appear:
NOTE: Gain and delay adjustments can be carried out during the same test.
Model Lower Than Process

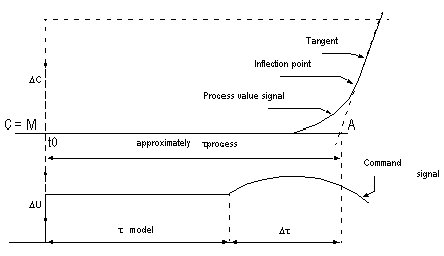

The following figure describes this scenario, T_DELAY takes on the value of A.
Model Greater Than Process

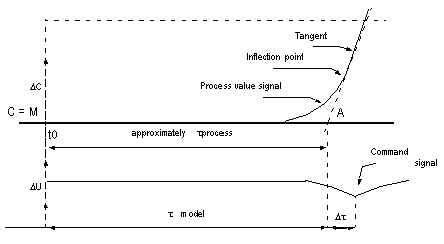

The following figure describes this scenario, T_DELAY takes on the value of A.
