Tracking Setpoint
(Original Document)
Description
In local setpoint mode and when the corrector is not in automatic mode, this function prompts the tracking of the measurement by the local setpoint. This avoids bumps on the corrector output when it returns to automatic mode.

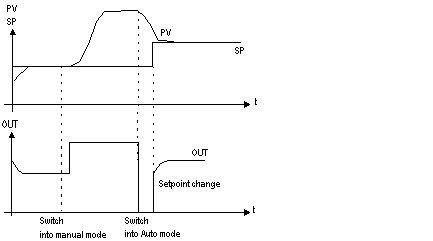

Function Not Configured
Change of the output when the function is not configured:

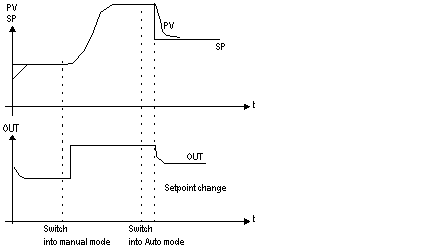

Function Configured
Change of the output when the function is configured:
