Structure of the properties dialog box

The dialog box for selecting function block instances and function types/function block types consists of two tabs in FBD and LD:

  • Function Blocks

    You can select a function block instance in this tab.

  • Function and Function Block Types

    You can select a function type or function block type in this tab.

Function Blocks tab

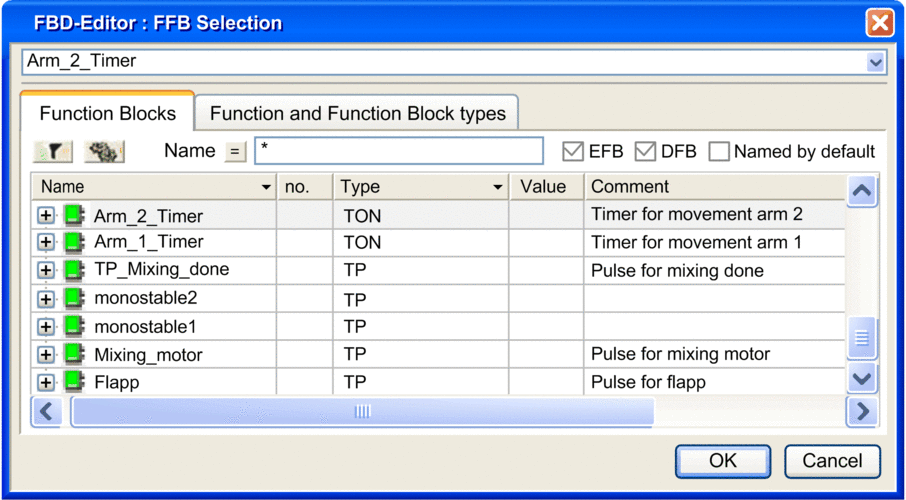

Representation of the Function Blocks tab:

Elements of theFunction Blocks tab:

Element

Description

Text box

The selected function block instances are displayed in this text box.

button

Clicking on this button updates the display corresponding to the filter term defined in the Name field.

button

Clicking on this button opens the Filtering data dialog box where you can define the conditions for the individual attributes.

Name

The name of the function block instance to search for can be entered in this text box. You can also use the joker * and ?.

button

Clicking on this button inverts the filter. The button changes from = to <> and vice versa.

EFB

When you activate this check box, the instances of elementary function blocks (EFBs) are displayed.

DFB

When you activate this check box, the instances of derived function blocks (DFBs) are displayed.

Named by default

When you activate this check box, the function block instances are displayed whose default names (e.g. FBI_19_3, TON_1) have not been changed.

Name

This column displays the names of the function block instances and their formal parameters (inputs, outputs).

no.

This column displays the order number of the formal parameters in the function block.

Type

This column displays the types of the function block instances and the data types of their formal parameters (inputs, outputs).

Value

This column displays the initial value of the formal parameters.

Comment

This column displays comments about the function block instances and their formal parameters (inputs, outputs).

HMI Variable

This column displays if the formal parameter is embedded in the data dictionary.

R/W Rights of Referenced Variable

This column displays the access rights when the formal parameter is a Reference data type.
NOTE: Help for the Type.

Hold down the Alt+F1 keys and then click on the function block type for which you wish to access Help.

Function and Function Block Types tab

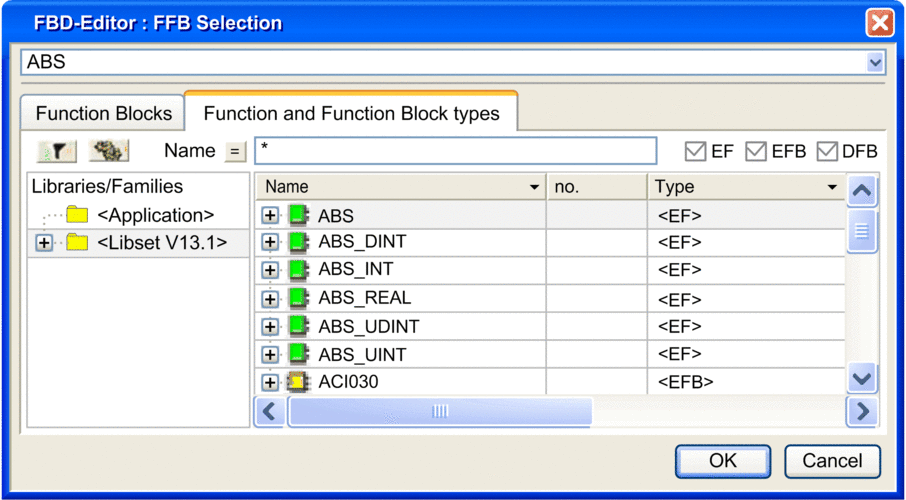

Representation of the Function and Function Block Types tab:

Elements of the Function and Function Block Types tab:

Element

Description

Text box

The selected function block instances are displayed in this text box.

Help On Type

Use this button to open the help for the function block types shown.

Note:

Alternatively, you can also hold down Alt+F1 and then click on the function block type for which you want to access Help.

button

Clicking on this button updates the display corresponding to the filter term defined in the Name field.

button

Clicking on this button opens the Filtering data dialog box where you can define the conditions for the individual attributes.

Name

The name of the function type or function block type to search for can be entered in this text box. You can also use the joker * and ?.

button

Clicking on this button inverts the filter. The button changes from = to <> and vice versa.

EF

When you enable this check box, Elementary Function types (EFs) are displayed.

EFB

When you enable this check box, Elementary Function Block types (EFBs) are displayed.

DFB

When you activate this check box, Derived Function Blocks (DFBs) are displayed.

Libraries/Families

The scope of the displayed function types and function block types is selected in this column:

  • To display all function types and function block types used in the project, select <Application> .

  • To display all function types and function block types of a library independently of the library assignment, select <Libset>.

  • To display all function types and function block types of a library, select the desired library.

  • To display all function types and function block types of a family, select the desired family.

Name

This column displays the names of the function types and function block types and their formal parameters (inputs, outputs).

no.

This column displays the order number of the formal parameters.

Type

This column displays the types of the function types and function block types and the data types of their formal parameters (inputs, outputs).

Value

This column displays the initial value of the formal parameters.

Comment

This column displays comments about the function types and function block types and their formal parameters (inputs, outputs).

R/W Rights of Referenced Variable

This column displays the access rights when the formal parameter is a Reference data type.
