Introduction

This function makes it possible to "look into" a macro step or a transition (section). This makes it possible to see the internal state of the macro/transition section when animation is used, or to make changes to the logic very quickly.

Refining steps

Process the following steps to refine steps:

Step

Action

1

Select the step.

2

You have the following options to display to refine steps:

  • Use the Services > Refine menu command.

  • Use the Refine menu command from the shortcut menu.

    or

  • Press the Ctrl+Q key combination.

Result: If the step contains only one action section, this will be opened automatically.

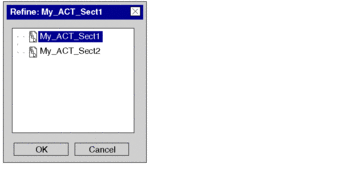

If the step contains several action sections, a selection dialog box is opened.

Example:

3

Select the desired action section.

Result: The action section is opened.

Refining macro steps

Process the following steps to refine macro steps:

Step

Action

1

Select the macro step.

2

You have the following options to refine macro steps:

  • Use the Services > Refine menu command.

  • Use the Refine menu command from the shortcut menu.

    or

  • Press the Ctrl+Q key combination.

Result: The macro section is opened.

Note: With nested macro steps several refine processes are possible.

Refining transitions

Process the following steps to refine transitions:

Step

Action

1

Select the transition.

2

You have the following options to refine transitions:

  • Use the Services > Refine menu command.

  • Use the Refine menu command from the shortcut menu.

    or

  • Press the Ctrl+Q key combination.

Result: The transition section is opened.
