Structure of the properties dialog box

The properties dialog box consists of three tabs:

  • General

    Enter the I/O event number, the programming language and the type of access protection for the I/O event section in this tab, see also section Event processing in the Reference manual.

  • Localization

    You can enter the functional module of the section in this tab.

  • Comment

    You can enter a comment in this tab.

General tab

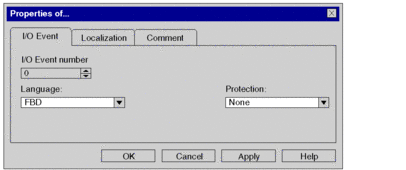

Representation of the General tab:

Elements of the General tab:

Element

Description

I/O Event number

You can enter the number of the I/O event in this list box.

The maximum number of I/O events depends on the selected CPU, see also section Event section in the Reference manual.

Language

The programming language of the section is displayed in this list box.

Note: The programming language can only be defined when creating the section. The programming language cannot be changed for existing sections.

Protection

Select the type of access protection from this list box.

  • None

    No protection

  • Read-Only

    Write protection

  • No read & write

    Read and write protection

See also section Program Unit, Section and Subroutine Protection.

OK

Use this command button to accept the entries and close the properties dialog box.

Apply

Use this command button to accept the entries without closing the properties dialog box.

Localization tab

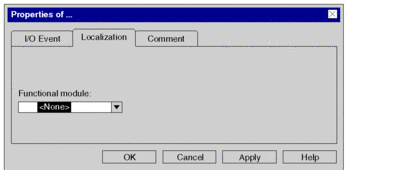

Representation of the Localization tab:

Elements of the Localization tab:

Element

Description

Functional module

Select the functional module to which the section is to be allocated to in this list box.

See also section Functional modules.

OK

Use this command button to accept the entries and close the properties dialog box.

Apply

Use this command button to accept the entries without closing the properties dialog box.

Comment tab

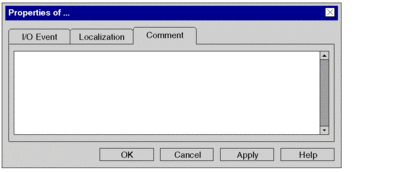

Representation of the Comment tab:

Elements of the Comment tab:

Element

Description

Text box

A comment about the section can be entered in this text box.

OK

Use this command button to accept the entries and close the properties dialog box.

Apply

Use this command button to accept the entries without closing the properties dialog box.
