Calling the properties dialog box

see Displaying the properties

Structure of the properties dialog box

The properties dialog box consists of two tabs:

  • General

    Enter the jump target of the jump in this tab.

  • Comment

    In this tab, a comment about the jump can be entered.

General tab

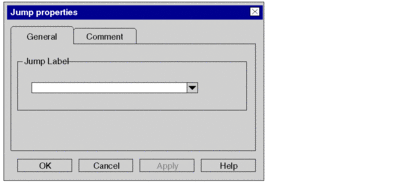

Representation of the General tab:

Elements of the General tab:

Element

Description

Jump Label

Enter the jump target in this text box, see also Definitions of jump targets (jump labels).

OK

Use this command button to accept all entries and close the properties dialog box.

Apply

Use this command button to accept all entries without closing the properties dialog box.

Comment tab

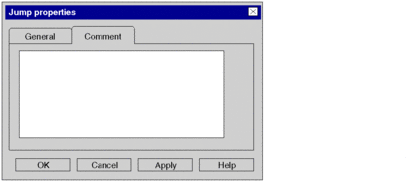

Representation of the Comment tab:

Elements of the Comment tab:

Element

Description

Text box

Enter a comment about the jump object.

OK

Use this command button to accept all entries and close the properties dialog box.

Apply

Use this command button to accept all entries without closing the properties dialog box.
