Overview

In online mode, you can display the location of instances using a DFB type, select one of the instances, and animate it.

Searching a DFB Instance

To search DFB instances in a program perform the following operations:

Step

Action

1

Select the corresponding DFB type and open one of the code sections.

2

Click the button in the programming language editor toolbar.

3

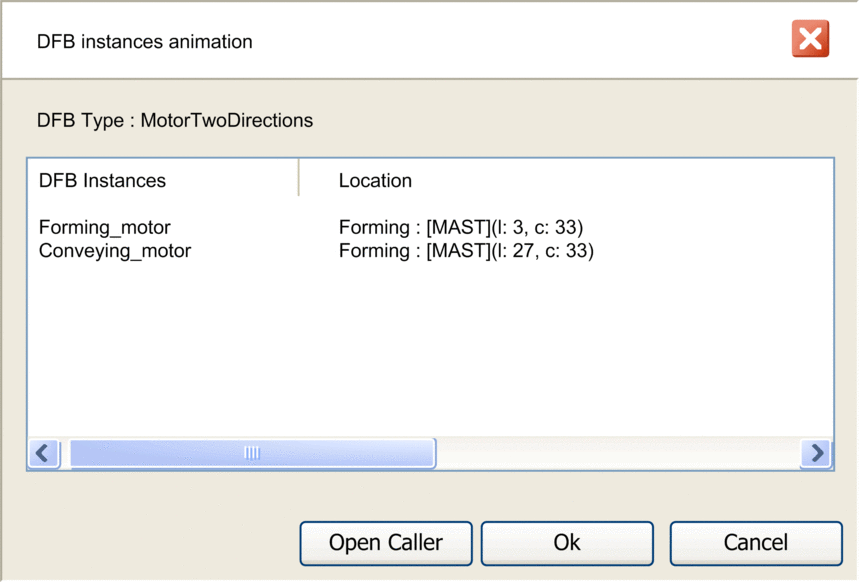

The DFB instances animation dialog box opens:

4

Select the DFB instance then click the Open Caller button.

5

This opens the DFB instance in your application program.

Animating a DFB Instance

To animate a section of a DFB Instance perform the following operations:

Step

Action

1

Select the corresponding DFB type and open one of the code sections.

2

Click the button in the programming language editor toolbar.

3

The DFB instances animation dialog box opens.

4

Double-click the DFB instance that you want to animate.

Or,

Select the DFB instance that you want to animate and click Ok .

A window showing the DFB sections opens:

In this box, choose the section code of the DFB that you want to animate and confirm with OK .
