At a Glance
The number of tabs in a Properties dialog varies according where the dialog is called from.
Properties Tabs
The Properties dialog is called when a DTM is selected:
To be added to connectivity tree in the DTM Browser from the Hardware Catalog:
For the Contextual Menu Properties service in the Hardware Catalog:
It opens with 4 tabs:
General
Device Information
DTM Information
Protocol Information
General
The General tab:
NOTE: The Alias name (and the DTM Tag name if the
vendor allows it) can be changed here or in the DTM Browser.
Device Information
The Device Information tab:

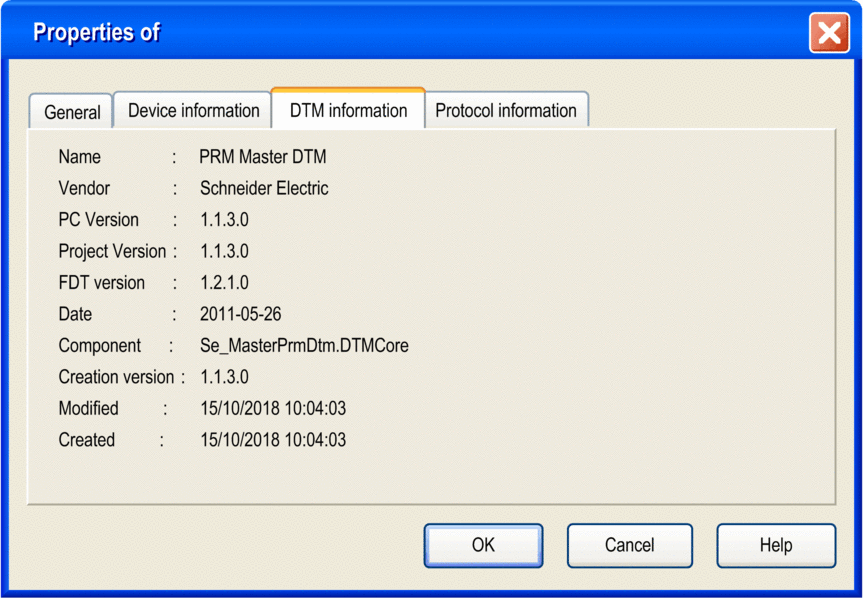

DTM Information
The DTM Information tab:
Protocol information
The Protocol Information tab:
Item |
Description |
|---|---|
Supported protocols |
These are the protocols available for the child nodes of this DTM. |
Required protocols |
These are the protocols that must be supported by the parent DTM of this DTM. |
