Procedure

The following table describes the procedure for creating a hyperlink in a comment for a variable in an animation table.

Step

Action

1

Opening an animation table.

2

Select the variable where the hyperlink is to be created.

3

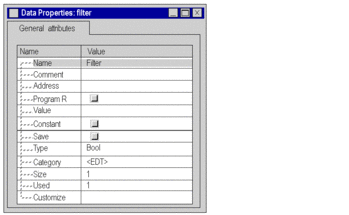

Select Data Properties from the contextual menu.

Result: The Data Properties dialog box appears.

4

Enter your comment in the comment line in the value column.

5

Select the comment.

6

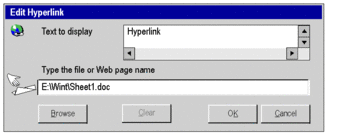

Select Hyperlink in the contextual menu.

Result: The Edit Hyperlink window appears.

7

The selected comment appears in the Text to display field.

In the Enter name of file or Web page field:

  • click to select the target document (example: C:\Program Files\Office2000\Office\Example) or

  • enter the Internet address (example: https://www.se.com).

8

Click OK to confirm your choice.
