At a Glance

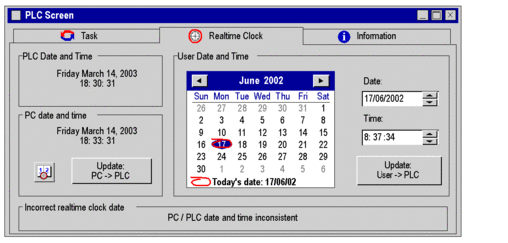

This field gives access to the real-time clock settings.
Description
Fields and functions:
Field |
Function |
|---|---|
PLC Date and Time |
Displays the date and time of the PLC processor. |
PC date and time |
Displays the date and time of the PC. The icon: The Update PC->PLC button updates the real-time clock of the PLC in line with the date and time of the PC. |
User Date and Time |
Is used to adjust the date and time using the calendar and the entry fields: Date and Time. The Update User->PLC button updates the real-time clock of the PLC in line with the date and time set by the user. |
Incorrect realtime clock date |
This field displays the cause of the error when a date or time is not accepted. |
is used to access the PC
Date and Time setting screen.
