At a Glance
The renumbering dialog box allows you to change a number of one or several messages in the list automatically.
How to Modify a Message Number
To modify a message number, you can proceed in the same way as when modifying a message or use the Renumerate command. The table below describes the procedure for modifying a message number using the Renumerate command.
Step |
Action |
---|---|
1 |
Right click on the Operator Screens folder in the project browser. Result: The relevant contextual menu appears. |
2 |
Execute the command.Result: The message manager dialog box appears. |
3 |
Left click in the number field of the message to be modified. Result: The field is selected. |
4 |

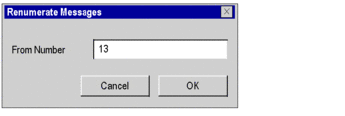

Activate the Renumerate command. Result: The following dialog box appears: ![]() |
5 |
Enter the new number and confirm with Enter. Result: The dialog box disappears and the selected message will be renumbered from the number entered in the From Number field. |
6 |
After you complete modifications, click OK to validate. Result: The new numbers are backed up in the project. |
