At a Glance
The objects library provides manufacturer objects which can be inserted into the operator screens. The objects are arranged in families. The library allows operators to create their own objects and insert them into a library family.
The library may be opened with the command.

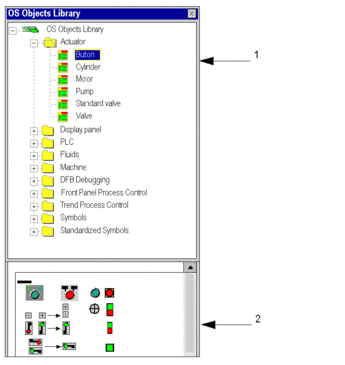

The figure below presents the objects library.
The table below provides a description of the objects library.
Number |
Description |
|---|---|
1 |
The browser displays all the families and objects. |
2 |
The window displays the graphic representation(s) of the selected object. |
