Configuring an X-Way Router Module

At a Glance

Before configuring the module as an X-Way router, the station’s logical networks must be created.

The following procedure is used to access, and then configure the station’s module as an X-Way router.

Step	Action

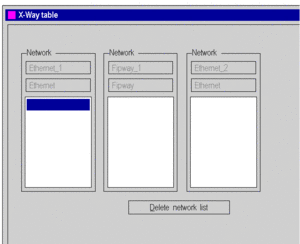

1	Open the Communication tab in your project browser and in the Routing table tab, click the X-Way table tab. Result: The following window appears. If the list of accessible module networks is empty, the window appears automatically (without double-clicking).

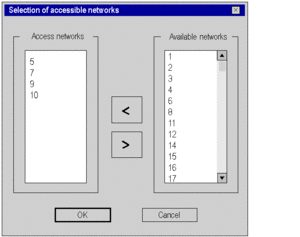

2	Double-click the highlighted field in order to configure the first network. Result: The Selection of accessible networks window appears.
3	Double-click the number of the required network from the Available networks scroll list. Result: The network number is assigned in the Access networks scroll list.
4	Perform operation 3 as many times as necessary to define all the networks accessible by the module. Once finished, proceed to step 5.
5	Confirm the selection by clicking OK.
6	Confirm the configuration of the X-Way router by closing the window or clicking the Enable button in the toolbar.

It is possible to remove the bridge function from the module.

Step	Action

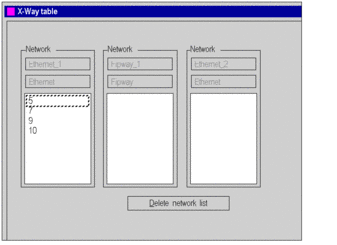

1	Access the following X-Way window.
2	Click Delete network list.
3	Confirm the configuration

It is possible to remove access to a single network.

Step	Action
1	Access the following X-Way window of the accessible networks.
2	Double-click the numbers of the accessible networks to be removed (left column). Result: The network number is reassigned in the Available networks scroll list.
3	Confirm the selection by clicking OK.
4	Confirm the router configuration.
