Principle

The 1-step mode is the mode that is available for most Control Expert functions.

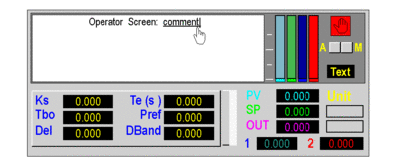

It consists of associating a hyperlink with a comment. The principle of the 1-step mode is that the target document can be accessed directly with a single click from the comment. Simply click on the underlined comment to open the linked document.

Available functions

You can create a hyperlink in comments and objects that belong to the following functions:

  • In the project browser:

    • directories and sub-directories of the browser,

    • hyperlink directory.

  • In the data editor on:

    • elementary variable (EDT) comment,

    • function block (DFB/FB) instance comment,

    • derived variable (DDT) comment.

  • In animation tables on:

    • variable (EDT/DDT/FB) comment.

  • In operator screens on:

    • text graphical object,

    • animated text objects with a message.
