At a Glance
The Find dialog box allows you to find a string of characters or a number in the list of messages.
Dialog box

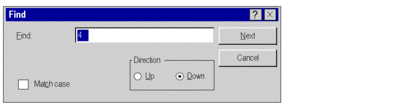

The screen below allows users to set the find parameters.
Description
The following table describes the different fields offered by the dialog box.
Field |
Description |
|---|---|
Find |
Allows you to enter the string of characters (or number) you want to find. |
Match case |
If this box is checked, find will match the case of the entered characters (upper or lower case). |
Direction |
This field allows you to define the search direction in the list: move up or move down. |
Next |
This command initializes find or starts the next find. |
Cancel |
This command cancels the search. |
How to find and replace a string of characters or a number.
Follow the steps below to find or replace a string of characters (or a number) in the list of messages:
Step |
Action |
|---|---|
1 |
Right click on the Operator Screens directory in the project browser. Result: The relevant contextual menu appears |
2 |
Click . Result: The message manager dialog box appears. |
3 |
Enable the Find command to find a string of characters or Replace to find and replace a string of characters. Result: A Find dialog box appears |
4 |
Fill in the different fields proposed by the dialog box and start the find or replace of the string of characters. Result: The changes are integrated into the list of messages. |
5 |
After you complete modifications, click OK to validate. Result: The new messages are backed up in the project. |
