Instructions
Proceed with the following steps:
Step |
Action |
|---|---|
1 |
With the mouse, select the module to be configured. |
2 |
Using the contextual menu, click Open Module. |
Configuration in offline mode
The configuration window is an editor from which you configure the module, some of your entries are checked, and in some cases you are assisted.
To complete the various fields, refer to the application-specific manual corresponding to the module in which you will find the procedure and information necessary for the configuration.

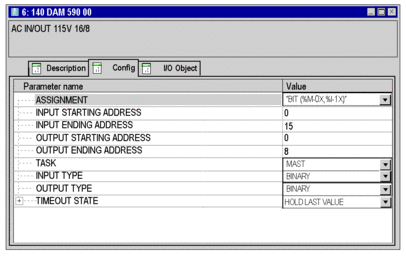

Screen example for a discrete module
Configuration in online mode
In online mode, for certain modules, two additional tabs are accessible:
The Debug tab, used to:
display the current values of the module data,
modify/force the data values,
diagnose the faulty channels.
the Fault tab which is used to display errors occurring in the module.
