Introduction
A default rack is selected when the project is created. It has the following address:
0 for a PLC from the Premium/Atrium or Modicon M340 family,
1 for a PLC from the Quantum family.
This rack contains the type of processor selected when the project is created. This processor can be replaced by a compatible processor.
Processors belonging to the Modicon M340 family.
Type of processors |
Number of racks managed |
---|---|
For all M340 PLC Version 01.00. |
1 rack |
For BMX P34 1000 Version 02.00 |
2 racks |
For BMX P34 20X0 |
4 racks |
Processors belonging to the Premium/Atrium family
Type of processors |
Numbers of racks managed |
---|---|
TSX 57 0244 |
1 rack |
TSX 57 1x4 |
Up to 4 racks |
TSX P57 204 TSX PCI 57 204 TSX P57 254 TSX P57 2634 TSX P57 304 TSX P57 354 TSX P57 3634 TSX P57 454 / TSX PCI 57 354 TSX P57 4634 TSX P57 554 TSX P57 5634 TSX P57 6634 |
Up to 16 racks |
Processors belonging to the Quantum family
Type of processors |
Numbers of racks managed |
---|---|
140 CPU 311-10 |
Does not depend on the type of processor |
140 CPU 434-12A/U |
|
140 CPU 534-14A/U |
|
140 CPU 651-50\60\60S |
|
140 CPU 652-60 |
|
140 CPU 658-60 |
|
140 CPU 671-60\60S |
|
140 CPU 672-60\61 |
|
140 CPU 678-61 |
Organization of a Modicon M340 Station on PLC Bus

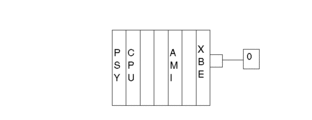

Station composed of a single rack:

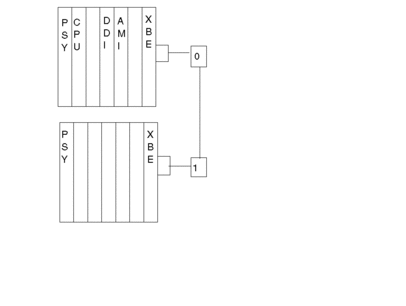

Station composed of several racks:

Organization of The Premium/Atrium Station on Bus X

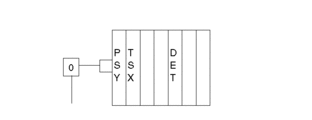

Station composed of a single rack (standard rack):

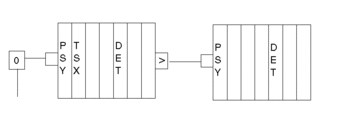

Station composed of several racks (extendable racks) with different addresses:

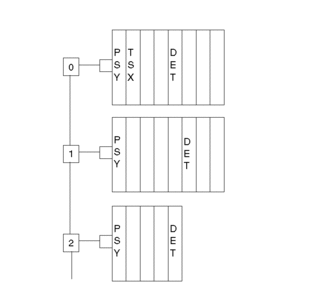

Station composed of several racks (extensible racks) with the same address:

Organization of a Quantum Station on Local Bus
Station composed of several racks:

Station composed of several racks (extendable racks) with different addresses:
