At a Glance

Messages comprise a text and a label. They are memorized in the project and are linked to objects via their number. In this way, it is not necessary to create a message per object and duplicate identical messages.

When a project is created, the message list is empty, and the user needs to fill it in: by creating your own messages or by importing messages from another file or another tool.

Displaying the message list

The following table describes the operations to perform in order to display the message list.

Step

Action

1

Select the Operator screens directory from the project browser.

2

Select the Message list > Open command in the contextual menu:

Result: The Message list window appears on the screen.

Message screen

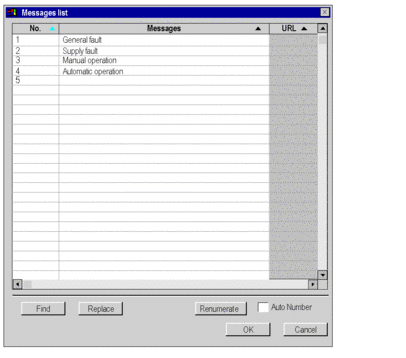

The screen below presents an example of a message list:

Description

The following table describes the commands accessible from the message screen.

Command

Description

Find

Allows you to search for a string of characters (or a message number).

Replace

Allows you to replace a string of characters (or a message number).

Auto Number

Allows automatic dialing of messages.

Renumerate

Gives access to a dialog box which allows you to define the first automatic dial number.
