At a Glance

This dialog box proposes 48 basic colors and allows you to create personalized (RGB) colors enhanced with tint, saturation and brightness.

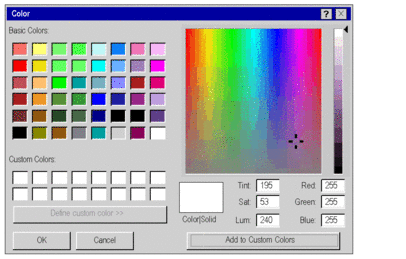

Color parameter screen

The following screen allows you to create or modify the extended colors.

Creating a personalized color

This table describes how to create a new color, that can be used for the graphic objects.

Step

Action

1

Position the cross hair for selecting color, tint and saturation to find the required shade.

2

Adjust (up or down) the light and color selection cursor to refine your choice.

3

Select a box from Custom Color.

4

Click on the Add to custom colors button to create a new color.
