Introduction

You can access operator screens through the project browser in the directory Operator Screens. It displays the information linked to each project in a tree directory.

The screens may be directly associated with the directory or grouped in families of screens.

The tree directory of operator screens may be expanded and contracted in order to obtain the required level of display.

Screens

The operator screens accept all editing functions:

• Create

• Modify

• Delete

• Move

• Attach/Detach

• Export

Screen families

The screens are regrouped in families which accept the same editing functions as the screens:

• Create

• Modify

• Delete

• Move

• Attach/Detach

• Export

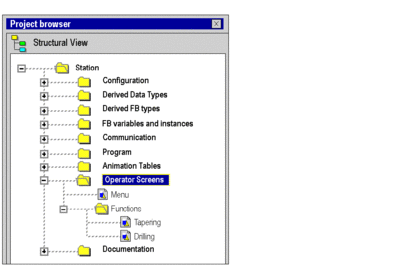

Introduction to the project browser window

The screen below shows the project browser window with in this example a single screen (Menu) and a screen family (Functions).
