At a Glance

An operator screen is a window just as any other editor (configuration, language, data editor). This window can be opened, moved, and resized.

Methodology

The following table lists the operations to perform in order to access operator screens.

Step

Action

1

View the project in structural view (View > Structural View).

2

In the project browser, expand the folder Operator Screens or the folder of the family for which you want to open a screen.

3

Open the screen or screens to be viewed. Select a screen to open it and activate the command Open in the contextual menu.

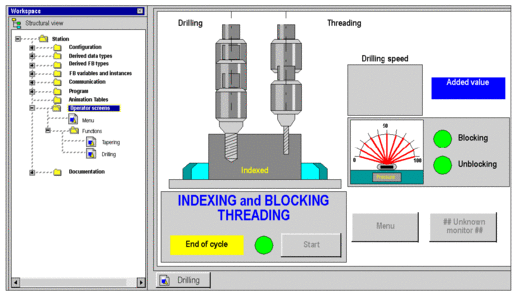

Example of screen

The following screen shows an example of operator screens.
