An IODDT allows all information (bits and registers) related to a channel to be handled through a user-defined variable. This variable is defined in the Control Expert data editor by selecting the appropriate IODDT for the module as a data type and specifying the topological address of the module using the following syntax:
%CH[\b.e\]r.m.c
where:
-
b = bus
-
e = equipment (drop)
-
r = rack
-
m = module slot
-
c = channel

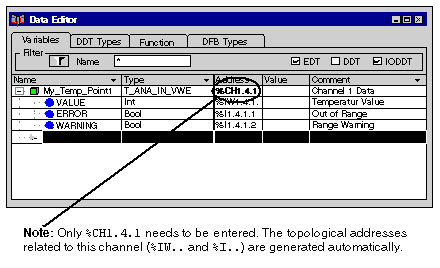

Here is an example of an IODDT for a thermocouple input module in slot 4 of a local rack:
Variables in the User Program
You can access all information related to channel 1 of the module using the following variables:
-
My_Temp_Point1.VALUE for the measured value
-
My_Temp_Point1.ERROR indicating an out-of-range condition
-
My_Temp_Point1.WARNING indicating an over-range condition
