Overview
This section provides information on the parameters, accessible in the Parameter Configuration Screen.

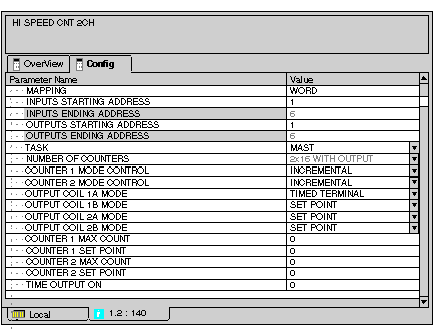

Parameter Configuration Default Screen
This diagram shows the Parameter Configuration default screen
Addressing and Task
This table shows the parameters for addressing and task with its values
Name
Value
Options
MAPPING
WORD
-
INPUTS STARTING ADDRESS
1
0-100000
INPUTS ENDING ADDRESS
6
-
OUTPUTS STARTING ADDRESS
1
0-100000
OUTPUTS ENDING ADDRESS
6
-
TASK
(Grayed if module in other than local)
MAST
FAST
AUX0
AUX1
AUX2
AUX3
NUMBER OF COUNTERS
This part of the parameter configuration screen depends on the choice made in the field: NUMBER OF COUNTERS. Therefore you find four tables accordingly.
This table shows the parameters configuration screen for the entry: 2x16 WITH OUTPUT
Name
Value
Options
NUMBER OF COUNTERS
2x16 WITH OUTPUT
1x32 WITH OUTPUT
1x32 NO OUTPUT
RATE SAMPLE MODE
COUNTER 1 MODE CONTROL
QUADRATURE
INCREMENTAL
COUNTER 2 MODE CONTROL
QUADRATURE
INCREMENTAL
OUTPUT COIL 1A MODE
SET POINT
TIMED SET POINT
LATCHED SET POINT
TERMINAL COUNT
LATCHED TERMINAL
TIMED TERMINAL
OUTPUT COIL 1B MODE
OUTPUT COIL 2A MODE
OUTPUT COIL 2B MODE
COUNTER 1 MAX COUNT
0
0-65535
COUNTER 1 SET POINT
COUNTER 2 MAX COUNT
COUNTER 2 SET POINT
TIME OUTPUT ON
This table shows the parameters configuration screen for the entry: 1x32 WITH OUTPUT
Name
Value
Options
NUMBER OF COUNTERS
1x32 WITH OUTPUT
2x16 WITH OUTPUT
1x32 NO OUTPUT
RATE SAMPLE MODE
COUNTER 2 MODE CONTROL
QUADRATURE
INCREMENTAL
OUTPUT COIL 2A MODE
SET POINT
TIMED SET POINT
LATCHED SET POINT
TERMINAL COUNT
LATCHED TERMINAL
TIMED TERMINAL
OUTPUT COIL 2B MODE
COUNTER 2 MAX COUNT: LOW WORD
0
0-65535
COUNTER 2 MAX COUNT: HIGH WORD
COUNTER 2 SET POINT: LOW WORD
COUNTER 2 SET POINT: HIGH WORD
TIME OUTPUT ON
This table shows the parameters configuration screen for the entry: 1x32 NO OUTPUT
Name
Value
Options
NUMBER OF COUNTERS
1x32 NO OUTPUT
2x16 WITH OUTPUT
1x32 WITH OUTPUT
RATE SAMPLE MODE
COUNTER 1 MODE CONTROL
QUADRATURE
INCREMENTAL
COUNTER 2 MODE CONTROL
QUADRATURE
INCREMENTAL
COUNTER 1 SET POINT: LOW WORD
0
0-65535
COUNTER 1 SET POINT: HIGH WORD
COUNTER 2 SET POINT: LOW WORD
COUNTER 2 SET POINT: HIGH WORD
This table shows the parameters configuration screen for the entry: RATE SAMPLE MODE
Name
Value
Options
NUMBER OF COUNTERS
RATE SAMPLE MODE
2x16 WITH OUTPUT
1x32 WITH OUTPUT
1x32 NO OUTPUT
COUNTER 1 MODE CONTROL
QUADRATURE
INCREMENTAL
COUNTER 2 MODE CONTROL
QUADRATURE
INCREMENTAL
COUNTER 1 RATE SAMPLER TIMER
0
0-65535
COUNTER 2 RATE SAMPLER TIMER
